نام محصول:
تنظیم کننده جریان حجمی
نام انگلیسی:
Volumetric flow regulator 900 series
برند:
Bonesi Pneumatik s.r.l.
مشخصات:

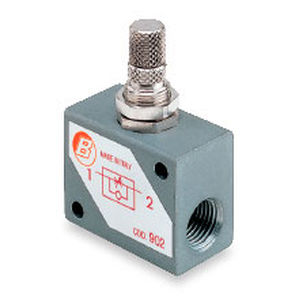

The flow regulators series 900 are available with one way or two ways air flow regulation. The range is composed by regulators with 1/8”, 1/4″ and 1/2” connection. The body is made of anodized aluminium while the needle is in nickel plated brass. The mounting is possible by holes in valve body.
توضیحات:
Technology
volumetric
Fluid
for air
Flow rate
Min.: 152 l/min(40.15415 us gal/min)Max.: 1,702 l/min(449.62083 us gal/min)
Pressure
Min.: 1 bar(14.5 psi)Max.: 10 bar(145 psi)
Nominal diameter
3.5 mm, 7 mm, 11 mm(0.138 in, 0.276 in, 0.433 in)
