نام محصول:
تقویت کننده فشار گاز
نام انگلیسی:

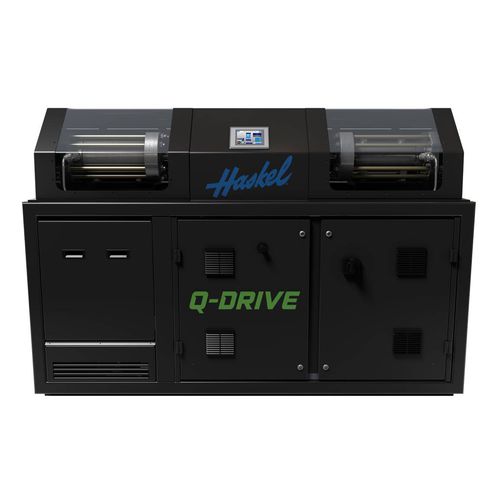

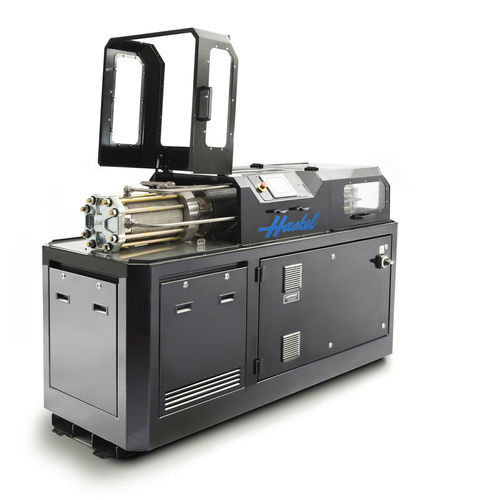

Gas pressure booster Q-Drive series
برند:
Haskel
مشخصات:
Q-Drive creates new advantages by revolutionizing gas boosting with proven technologies.
Q-Drive combines Haskel’s 75 years of compression experience with electric servo drive technology that has been in use for over a decade in industrial and scientific applications. These electric servo drives allow Haskel to replace hydraulic cylinders with a technology that is: quiet, compact, efficient, reliable, low maintenance and infinitely controllable. Haskel has brought these two technologies together in the Q-Drive to ensure unmatched value and best in industry performance.
Q-Drive reaches new levels of cleanliness, quietness, and efficiency.
– Clean compression
– Quiet operation (<77dBA)
– Infinite controllability
– Energy efficient
– 100% duty cycle
– Environmentally friendly
– Small footprint—25% less square footage than an average HPU
– Less power consumption than hydraulic & air-driven boosters
– Easy maintenance with quick access and visual diagnostics
Q-Drive features a smart Human Machine Interface (HMI) for advanced monitoring and diagnostics:
– Touchscreen programming
– Temperature monitoring
– Graphic display of system operation
– Interface between in-house automation systems
– Intelligent diagnostic control
– Reduced maintenance and increased up-time
Q-Drive is powered by an electric servo drive motor. The motor’s rotation creates linear actuation, providing greater process control and high precision movement.
– Smaller footprint without lost flow rate and pressure
– Superior design with quick-change seal components, fastest in the industry
– 25% less energy required for cooling than standard hydraulic intensifiers
توضیحات:
Media
gas
Other characteristics
electric power, servo-driven
Pressure
1,100 psi, 3,500 psi, 6,000 psi
Flow
20 ft³/min, 26 ft³/min, 32 ft³/min(1 m³/min, 1 m³/min, 1 m³/min)
