نام محصول:
تقویت کننده فشار پیستون

نام انگلیسی:
Piston pressure booster

برند:
HIP

مشخصات:

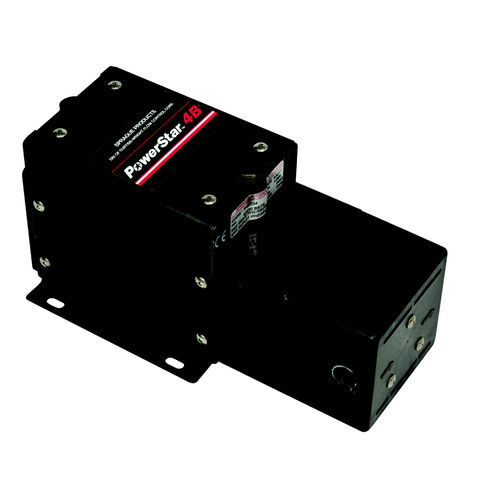

The PowerStar™4B gas booster is a reciprocating, single or double or dual stage air operated unit. It uses an air-piloted unbalanced type air directional valve to cycle the booster.

FEATURES

Works off compressed air supplies

Operates quietly

Features mechanical separation between air drive and boosted gas

Compatible with most gases

THE PRINCIPLES OF OPERATION

The PowerStar™4B gas booster operates on the differential piston area principle. A large area piston, driven at low air pressures, drives a small area compression piston which converts input gas to higher pressure. The output gas or discharge pressure is determined by the ratio between the area of the drive piston, the operating air pressure and the available precharge pressure supply.

The function of the precharge pressure is to charge the high pressure cylinder inside the booster with gas, reducing the time needed to reach higher pressures. In double-ended gas boosters, the precharge gas adds power to the compression stroke.

THE ACTUAL OPERATION

The PowerStar™4B gas booster works rapidly at first, then slows and stops at a pressure balance. The booster holds the pressure balance indefinitely, assuming no leakage. When a pressure imbalance occurs, the booster automatically restarts and restores the pressure balance. During operation, exhaust air from the air drive section cools the high pressure boosting chamber.

توضیحات:
Technology
piston, reciprocating

Media
gas, compressed air
