نام محصول:
تقویت کننده فشار پیستون
نام انگلیسی:
Piston pressure booster ADP300-150
برند:
Airpol
مشخصات:
Reciprocating booster
Overpressure [MPa] 2.5
Suction pressure [MPa] 0.8
Capacity [m³/h] 100
Capacity [m³/min] 1.67

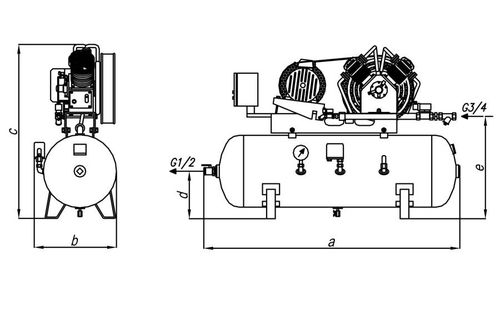

Dimensions (LxWxH) [mm] 1550 x 600 x 1240
Electrical box dimensions (LxWxH) [mm] 500 x 266 x 1500
Suction air connection G 3/4
Compressed air connection G 1/2
Weight [kg] 320
Air receiver volume [l] 150
Ambient temperature [°C] +5 ÷ +40
Compressed air temperature on the outlet [°C] approx. 20 degrees above ambient temperature
Sound level L [dB(A 82
Quantity of cylinders / stage 2/1
Compressor rotational speed [rpm] 900
Nominal motor power [kW] 7.5
Feed voltage [V] 400
Recommended power feed cable [mm2 ] 4×4
Protection fuse [A] 25
توضیحات:
Technology
piston
Media
compressed air
Number of stages
two-stage
Other characteristics
with tank
Flow
130 m³/h(4,591 ft³/h)
