نام محصول:
تقویت کننده فشار متقابل
نام انگلیسی:

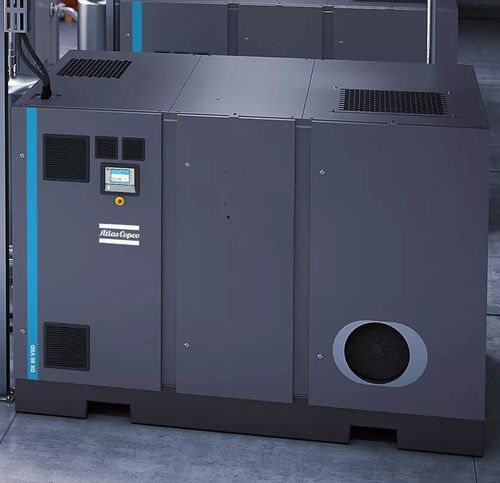

Reciprocating pressure booster DX
برند:
Atlas Copco Compressors
مشخصات:
DX&DN (VSD): advanced oil-free air and nitrogen technology
Advanced single or two stage compression technology. Boosts your air or nitrogen up to a wide range of pressure and flows
Improve your workplace environment
The DX/DN boosters are adaptable in design: depending on the kind of gas you want to boost for your process, they can be delivered with or without canopy.
No oil contamination
The boosters are ISO 8573-1 Class 0 certified, meaning that no oil from the booster will enter your air or gas network, minimizing production downtime.
More on Class Zero
High energy savings
Variable Speed Drive (VSD) adjusts the flow according your needs, reducing your compressed air or nitrogen energy bills by approximately 35%.
More on VSD
Re-use your energy
The integrated energy recovery system uses the heat of compression for hot water elsewhere in your production system like boilers, showers, space heating…
Plug and run
DX/DN (VSD) boosters are installed in no time thanks to their compact design, integrated components and concrete base. Minimal installation costs
Control your process
The Elektronikon® unit saves you money by controlling the pressure and flow to maximise efficiency and protects your equipment from failure.
Certified oil-free and nitrogen boosters
Our robust DX/DN boosters come as mono-stage or two-compression stage machines, compressing your air or nitrogen in a broad variety of pressure:
up to 70 bar (e) maximum
flow ratios depending on your specific process needs
توضیحات:
Technology
reciprocating
Media
nitrogen, compressed air
Lubrication
oil-free
Number of stages
two-stage
Pressure
Min.: 20 bar(290.1 psi)Max.: 100 bar(1,450.4 psi)
Flow
Min.: 60 m³/h(2,119 ft³/h)Max.: 12,800 m³/h(452,028 ft³/h)
