نام محصول:
تقسیم جریان هیدرولیک
نام انگلیسی:

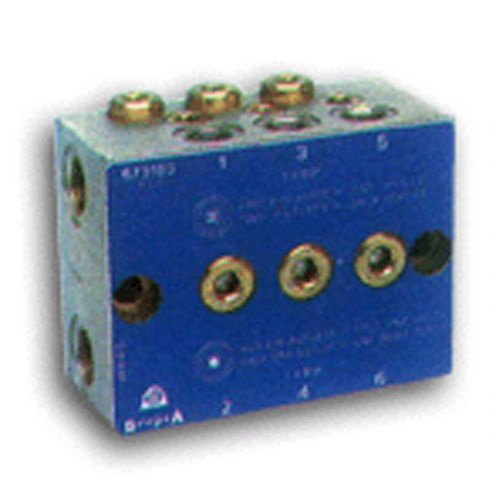

Hydraulic flow divider AGG6F
برند:
Dropsa spa
مشخصات:
Fixed Discharge 12 cc. per/stroke (.732 cu. in./stroke) Dual Line System
The feeder body is made of special anti-friction steel. Pistons are made of tempered steel. Bores and pistons are lapped to provide superior sealing. These feeders do not employ indicator turrets (see AGG6 series) and are used for special applications.
The body has a galvanized finish and features an adaptor for single or double outlet conversion. They are set by the factory at 12 cc./stroke (.732 cu. in./stroke) unless otherwise requested.
Key Features:
– Temperature range: -30 to +80oC
– Cycles: 100/min.
– Min. Viscosity: 100 cSt (462 SSU)
– Grease Max.: 265 ASTM (NLGI 2)
– Connections: – Inlet: 3/8″ – Outlet: 3/8″
توضیحات:
Flow type
hydraulic
Fluid
grease
Priority
fixed-priority
Operating pressure
400 bar(5,802 psi)
