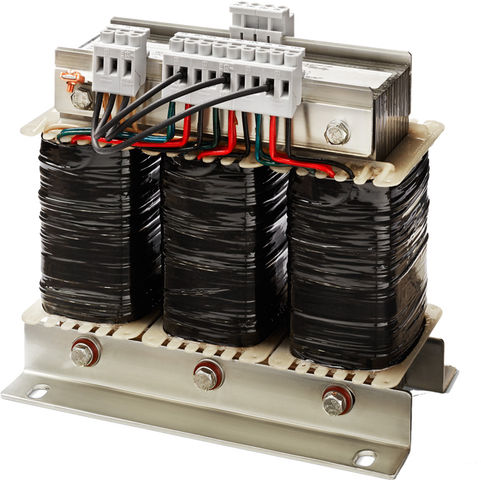

ترانس برق – Trafomodern Transformatorengesellschaft – Power transformer DT

نام محصول:
ترانس برق

نام انگلیسی:
Power transformer DT

برند:
Trafomodern Transformatorengesellschaft

مشخصات:
Designed and tested according

IEC/EN 61558-2-1 / EN 60076-1
UL 5085-2
CSA 22.2 No. 66

For use according to

IEC/EN 60204-1

Typical applications

Voltage adjustment
Generation of four-wire networks based on three-wire network
Power transfer

Basic equipment

Separate windings
Insulation class B / F from 6.3 kVA
Ambient temperature –25 to 40 °C
Connection terminal (<=115 A)
Frequency 50/60 Hz
±5 % tapping on the primary side

توضیحات:
Type
power

Configuration
cast resin

Electrical characteristics
three-phase

Mounting
floor-standing

Other characteristics
safety

Electric power
Max.: 11.2 kVA(15.2278 hp)Min.: 0.1 kVA(0.136 hp)
