نام محصول:
ترانس برق

نام انگلیسی:
Power transformer

برند:
Power and Distribution Transformers

مشخصات:

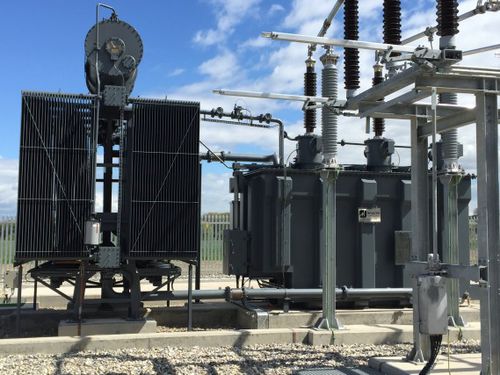

We design, manufacture and supply cold rolled grain oriented steel (CRGO) double wound power transformers up to 200 MVA.

All of our power transformer projects are supported by dedicated account managers and expert design engineers to deliver a solution that best suits your needs often with impressively short lead times.

Our transformers are manufactured in accordance with internationally recognized standards (BS, IEC and ANSI), comply with the EU Eco Design Directive for transformers (where applicable) and come with industry leading 24 month guarantee from dispatch.

Our power transformers are available both liquid filled (typically Oil or Midel) or dry type (Cast Resin). Basic specification comprises:

1. Off load tap changer or selector

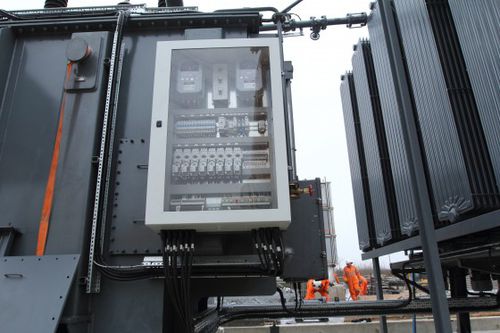

2. On load tap changer with drive mechanism and remote tap change control. In addition both automatic voltage regulation and parallel operation can be provided.

3. Cooling specifications to ONAN, ONAF, OFAF, KNAN, KNAF as required

4. Switchgear supplied and fitted on both HV and LV sides

توضیحات:
Type
power

Configuration
dry

Electrical characteristics
single-phase, three-phase

Mounting
floor-standing

Other characteristics
oil-filled, hermetically-sealed

Electric power
Max.: 200,000 kVA(271,924.231 hp)Min.: 3,000 kVA(4,078.8635 hp)
