نام محصول:
ترانس برق
نام انگلیسی:

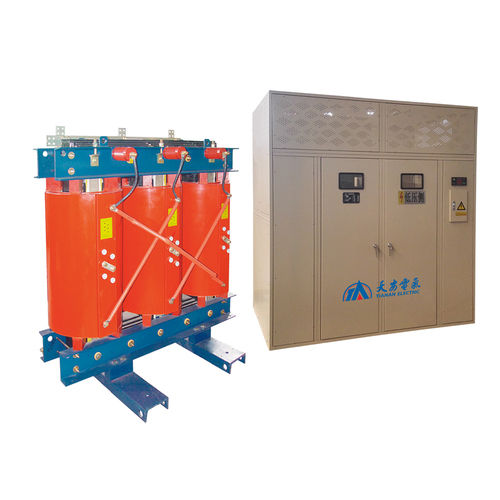

Power transformer SCB series
برند:
Ningbo Tianan (Group) CO.,Ltd.
مشخصات:
Scope of application: SC series dry-type transformers can be used as replacement products for oil-immersed transformers. Especially suitable for high-rise buildings, commercial centers, hospitals, laboratories, museums, oil drilling platforms, ships, ports, stations, airports, petrochemical plants, rail transit, tunnels, underground mines, urban underground pipe corridors and other places.
• Introduce European filler vacuum thin insulation casting and low voltage coil foil winding technology
• High and low voltage coils are wound by copper wire or copper foil as a whole according to the capacity
• Use high-quality epoxy resin and glass fiber composite material
• The core is made of cold-rolled grain-oriented silicon steel sheet with high permeability and low loss
• The 1E SC(B)10 resin-insulated dry-type power transformer passed the aging test of equivalent 40-year operating life in 2009 in accordance with the nuclear safety standards such as IEEE323, IEEE344, and passed the seismic test together with the low-voltage cabinet.
توضیحات:
Type
power
Configuration
dry
Applications
for industrial applications
Electrical characteristics
three-phase
Mounting
pad-mount
Other characteristics
epoxy resin, low-loss, oil-immersed
Output power kVA
Min.: 50 kVA(67.9811 hp)Max.: 2,500 kVA(3,399.0529 hp)
