نام محصول:
ترانس برق
نام انگلیسی:

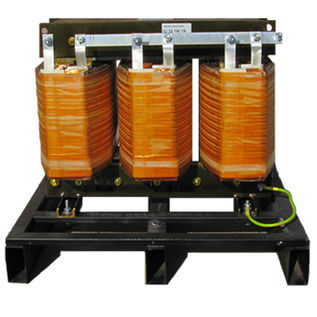

Power transformer
برند:
Layer Electronics s.r.l.
مشخصات:
The single-phase and three-phase transformers and auto-transformers are equipped with either copper or aluminum windings. These units feature air-type cooling and can perform up to 2000 kVA, with a frequency up to a maximum of 1000 Hz.
Their insulation voltage is 3 kV with classes H, F and B. These units have a protection level of IP00.
Our 1-Ph and 3-Ph transformers and autotransformers are designed to meet the following priority requirements:
Cooling: air type
Power: up to 2000 kVA
Frequency: up to 1000 Hz
Phases: 1/1, 3/1, 3/3
Insulation class: H, F, B
Any vectorial group for 3-Ph
Windings: copper or aluminium
Insulation voltage: 3 kV
Protection rating: IP00 or more on request
Environmental:
– Temperature: 0°C ÷ 50°C
– Non-condensing humidity: 0% ÷ 95%
Compliance with the standards: IEC 726 and IEC 76 (power and distribution), EN 61558-2-2 (control), EN 51558-2-4 (isolating), EN 61558-2-6 (safety-isolating), EN 61558-2-13 (autotransformers), EN 61558-2-15 (electromedical), EN 60076-6 and EN 61558-2-20 (reactors), UL 506, CSA 66/88 and Nema (for North-America), RINA (for naval applications)
توضیحات:
Type
power, isolation, electrical power supply
Configuration
dry
Applications
for medical applications, for electronics, for marine applications, industrial, for indoor service, protection, for switching power supplies, emergency power supply, for UPS, for industrial use, for halogen lamps, for swimming pool spotlights, for railway applications, for IGBT, for DC/DC converters, for industrial applications, for photovoltaic applications, for inverters
Electrical characteristics
three-phase to dual-phase
Other characteristics
AC, laminated, low-frequency, safety, portable, compact, switching, primary, secondary, frequency, phase-shifting, step-up, low-loss, with copper windings, flyback, with choke, custom, K-factor, earth-leakage, rectifier, multi-winding
Electric power
Max.: 2,000,000 W(2,719.2423 hp)Min.: 50 W(0.068 hp)
Primary voltage
Max.: 1,000 VMin.: 1 V
Secondary voltage
Max.: 1,000 VMin.: 1 V
