نام محصول:
ترانس برق
نام انگلیسی:

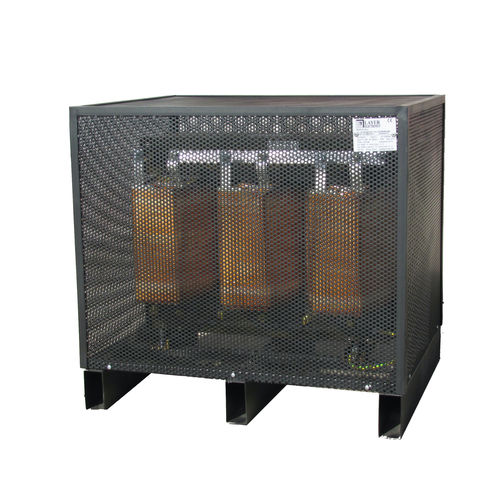

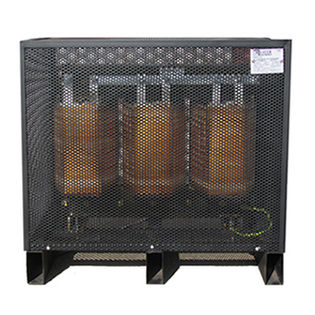

Power transformer
برند:
Layer Electronics s.r.l.
مشخصات:
Our 1-Ph and 3-Ph insulation transformers are designed to meet the following priority requirements:
Anti-jamming screening between the primary and secondary windings
Cooling: air type
Power: up to 2000 kVA
Frequency: up to 1000 Hz
Phases: 1/1, 3/1, 3/3
Insulation class: H, F, B
Any vectorial group for 3-Ph
Windings: copper or aluminium
No induced harmonic distortion
Insulation voltage: 5.5 kV
Protection rating: IP00 or more on request
Environmental:
Temperature: 0°C ÷ 50°C
Non-condensing humidity: 0% ÷ 95%
Compliance with the standards: IEC 726 and IEC 76 (power and distribution), EN 61558-2-2 (control), EN 61558-2-4 (isolating), EN 61558-2-6 (safety-isolating), EN 61558-2-15 (electromedical), UL 506, CSA 66/88 and Nema (for North-America), RINA (for naval applications)
توضیحات:
Type
power, isolation, electrical power supply
Configuration
dry
Applications
for switching power supplies, for electronics, industrial, rugged, emergency power supply, telecommunications, for medical applications, for industrial applications, for indoor service, for photovoltaic applications, for marine applications, protection, for inverters, for outdoor service, for industrial use, for swimming pool spotlights, for railway applications, for IGBT, for UPS, for DC/DC converters
Electrical characteristics
high-frequency, three-phase to dual-phase, silicon-controlled rectifier, single-phase, three-phase, low-voltage
Other characteristics
test, control, laminated, safety, vacuum impregnation, step-up, AC, portable, high-impedance, rectifier, three-winding, compact, primary, switching, secondary, flyback, low-frequency, with double secondary, low-loss, K-factor, protection, frequency, custom, two-winding, integrated, with choke, with copper windings
Electric power
Max.: 2,000,000 W(2,719.2423 hp)Min.: 50 W(0.068 hp)
Primary voltage
Max.: 1,000 VMin.: 1 V
Secondary voltage
Max.: 1,000 VMin.: 1 V
