نام محصول:
ترانس برق

نام انگلیسی:
Power transformer ECODIS-BI1520

برند:
Groupe SANERGRID

مشخصات:

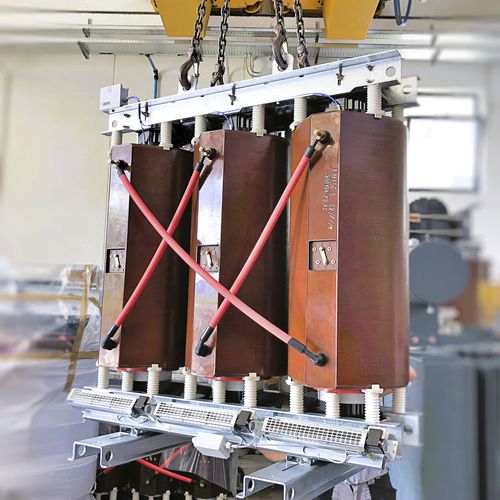

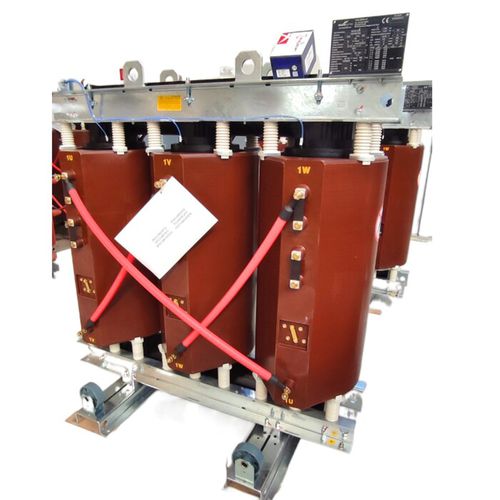

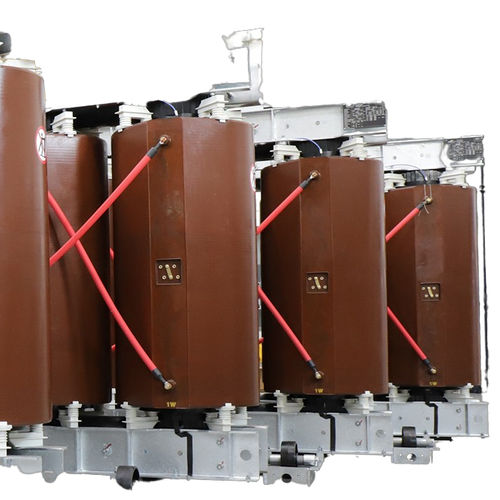

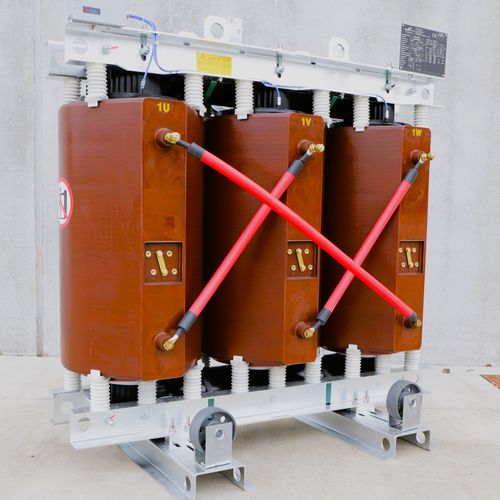

Description of the TrafoELETTRO ECODIS-BI1520™ standard range:

Standard standardized power from 160 up to 3150 KVA. For power ratings up to 25MVA, see our special ECOTRAFO-SP™ range.

Frequency : 50 Hz, DYN11 coupling

Short-circuit voltage: 6%. For special UCCs, see our ECOTRAFO-SP™ special range.

Rated insulation voltage: 24 kV. For insulation voltages of 15 or 36 kV consult our ECODIS15™ and ECODIS36™ ranges.

Rated impulse withstand voltage: 125 kV BIL2, for BIL1 to 95kV please consult us.

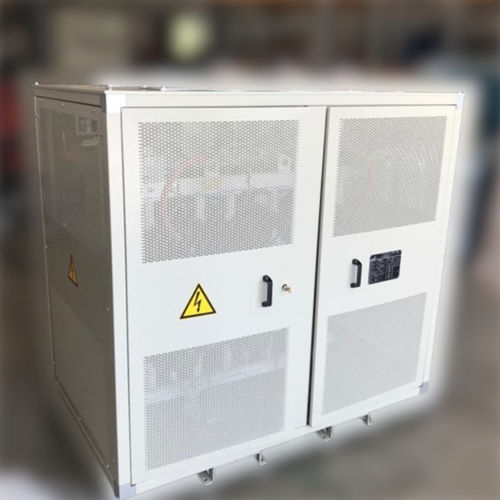

Protective enclosure: if you don’t want to remain in IP00, we design and manufacture our IP or protective enclosures. For the ECODIS-BI1520™ range, we offer IP31 to IP43 enclosures. For custom enclosures, IP54 or adaptations of busbars or plug-in terminals on IP roofs refer to the IP-TRSEC-SP range.

Included by default: 4 lifting rings, 4 swivel-mounted rollers, off-load off-load voltage adjustment bars on HV side +/- 2×2.5; routine tests.

Standard connections: HV from above or below, LV from above.

توضیحات:
Type
power, distribution

Configuration
dry

Applications
for photovoltaic applications, industrial, for medical applications, for electrical networks, substation, for railway applications, for industrial applications, electric arc furnace, for offshore applications, for wind turbine, for mining equipment

Electrical characteristics
three-phase

Other characteristics
multi-winding

Electric power
Max.: 3,150 kVA(4,282.8066 hp)Min.: 100 kVA(135.9621 hp)

Primary voltage
20 kV

Secondary voltage
410 V
