نام محصول:
ترانس برق
نام انگلیسی:

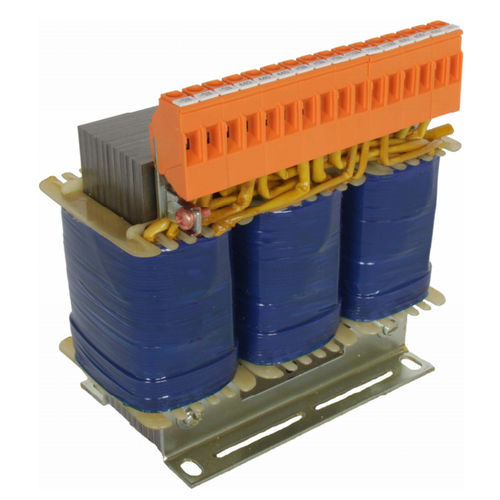

Power transformer DK series
برند:
Getra
مشخصات:
These transformers are constructed to VDE0570/IEC 61558 and satisfy the conditions for normal use without special requirements.
The power values listed refer to the version with separate windings and in the case of the type series with air duct to the specified operating position.
If transformers are installed in the housing specified in the data sheets the insulation class changes from ta = 40°C/B to ta = 25°C/B or the power which can be drawn must be reduced accordingly.
Terminal blocks which are safe from finger-touch are provided for connection.
Other versions are naturally available on request, e. g. auto-transformers, transformers with different frequencies, with 2-cell winding, with high-current windings or with lower losses or voltage drops, higher insulation classes, etc.
The 3 coils can be assigned to different vector groups depending on the required characteristics. The following table contains a selection of these vector groups with the preferred groups highlighted.
Our three-phase transformers are constructed in accordance with vector group Yy0 unless otherwise requested.
Three-Phase Transformers to VDE 0570/IEC 61558
•Power range 50 VA – 3 kVA
•Core-type transformer
•Frequency 50/60 Hz
•Base bracket mounting
•Terminal blocks shockproof to VBG 4
•Insulation class ta = 40° C/B
•Class of protection I
•Type of protection IP00
توضیحات:
Type
power
Configuration
cast resin
Electrical characteristics
three-phase
Mounting
floor-standing
Other characteristics
three-winding
