نام محصول:
ترانس برق

نام انگلیسی:

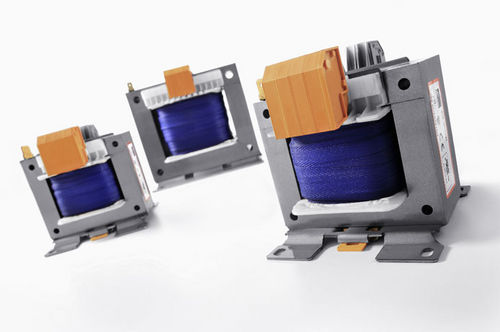

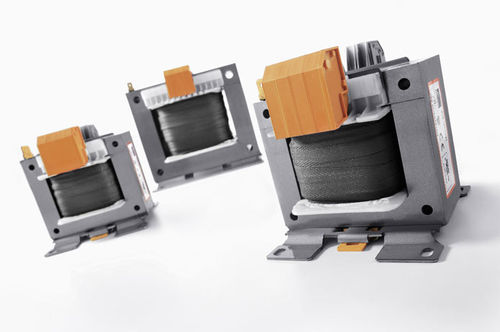

Power transformer STE series

برند:
Block Transformatoren-Elektronik

مشخصات:
General Data
Rated input voltage 230 ‑ 400 Vac
Rated output voltage 24 ‑ 230 Vac
Rated power 63 ‑ 2500 VA
Insulation class B
Maximum ambient temperature 40 °C
Efficiency up to 95 %
Degree of protection IP 00

Advantages
Very good switch‑on behaviour thanks to reduced starting currents
High performance for the volume thanks to compact design
Primary side ±5 % tappings for voltage adjustment
Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation
Quick to cable up thanks to the use of spring‑loaded terminals
Contact protected screw connection terminals complying with UVV BGV A3
Simple mounting thanks to robust metal footplate with oval slots
Up to 250 VA with combination footplate for bolted and rail mounting

توضیحات:
Type
power, isolation

Configuration
cast resin

Electrical characteristics
single-phase

Mounting
through-hole, DIN rail mount

Other characteristics
control, vacuum impregnation, compact

Primary voltage
Max.: 400 VMin.: 230 V

Secondary voltage
Max.: 230 VMin.: 24 V
