نام محصول:
ترانس برق
نام انگلیسی:
Power transformer
برند:
Atexindustries BV
مشخصات:

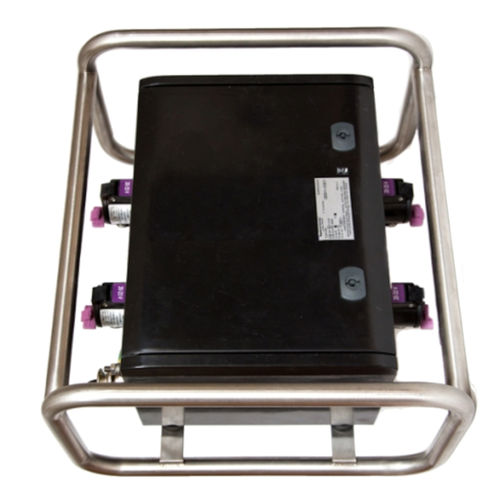

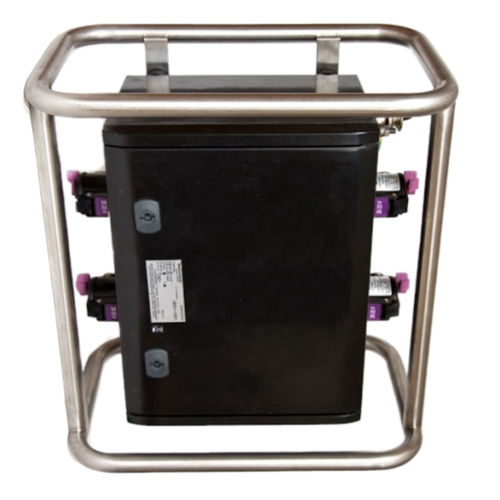

Portable transformer exclusively equipped with ATX sockets, for places where a safe voltage (SELV, PELV) is required in an ATEX zone.
Lightweight transformer (only 18kg), in black GRP.
• With protective stainless steel frame protecting the sockets in the event of a fall and allowing easy handling.
• Easy opening for handling fuses.
• Standard model equipped with 4 pcs ATX sockets, type of choice.
SPECIFICATIONS
Dimensions / weight: 400 x 300 x 200 mm.
Materials: Housing GRP with stainless steel protecting frame.
Cable: Supply by 5m. rubber cable H07RN-F and ATEX plug of choice.
Overload protection: Fuses.
Sockets: 4 sockets 16A/2p or 3p of choice
Protection gas: Ex de IIC T4 Gb
Protection dust: Ex t D IIIC T195°C Db
Ingress protection: IP66
Tamb: -20°C to +55°C
Zones Suitable for use in ATEX zones 1, 2, 21 and 22
توضیحات:
Type
power
Configuration
dry
Electrical characteristics
voltage
Mounting
opening
Other characteristics
protection, portable
Output power kVA
0.25 kVA(0.3399 hp)
Primary voltage
230 V
Secondary voltage
12 V, 24 V, 42 V
Frequency
50 Hz
