نام محصول:
ترانسفورماتور منبع برق
نام انگلیسی:

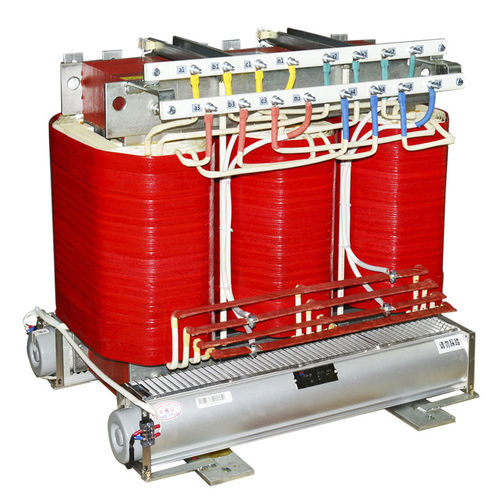

Electrical power supply transformer SKS-SGBL-160/0.48
برند:
Shenzhen Sikes Electric Co., Ltd.
مشخصات:
SIKES K-Factor transformer
K-factor is a weighting of the harmonic load currents according to their effects on transformer heating, as derived from ANSI/IEEE C57.110. The higher the K-factor, the greater the harmonic heating effects.
There are many different loads such as computers, solidstate devices and motors which cause a non linear load. These type of loads generate harmonic currents that cause transformers and system neutrals to overheat, which can destroy the transformer.
When a non-linear load is supplied from a transformer, K-factor transformers withstand the heating effects of harmonic currents created by these type of loads.
Application: Data center power supply, harmonic filter
توضیحات:
Type
electrical power supply
Configuration
dry
Applications
industrial
Other characteristics
vacuum impregnation, protection, K-factor
Electric power
Max.: 1,000,000 WMin.: 1,000 W
Primary voltage
Max.: 660 VMin.: 220 V
Secondary voltage
Max.: 600 VMin.: 5 V
Primary current
Max.: 2,000 AMin.: 1 A
