نام محصول:

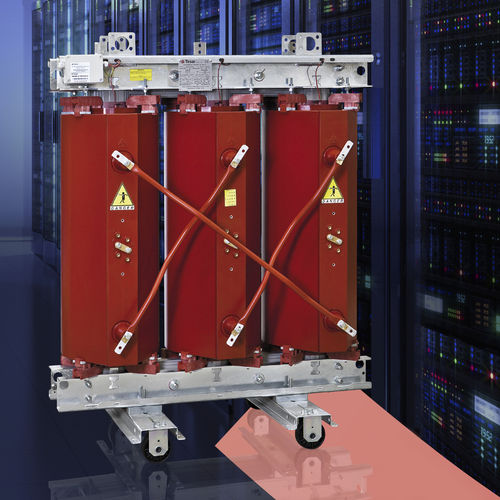

ترانسفورماتور مرکز داده

نام انگلیسی:
Data center transformer

برند:
Tesar Srl

مشخصات:
Tesar offer a wide range of customized solutions for feeding Data Centres:

• Transformers with K factor up to 20 (high harmonic content)
• Electrostatic screen between primary and secondary
• Simplified Busbars connection interface
• Configuration for double secondary windings in interleaved (coupling factor > 0.9) or double storey (coupling factor < 0,2)
• Network frequency 50Hz, 60Hz
• Insulation classes F/F or H/H
• MV surge arresters
• Set of fans for power increasing up to +40%
• Environmental, climatic and fire classes up to E4, C3, F1
• Metallic enclosures for indoor and outdoor installation

توضیحات:
Type
power, current, distribution, electrical power supply, pulse

Configuration
encapsulated, cast resin, immersed, split-core

Applications
substation, industrial, for electrical networks, high-power, for UPS, for wind turbine, for indoor service, for outdoor service, gate driver, for automotive applications, for data centers, for railway applications, for photovoltaic applications, power line carrier (PLC), for medical applications, electric arc furnace, for switching power supplies, rugged, telecommunications, for lighting, for DC/DC converters, for marine applications, for mining equipment, for IGBT, emergency power supply

Electrical characteristics
single-phase, three-phase, low-voltage, high-voltage, medium-voltage

Mounting
floor-standing, through-hole, pad-mount, surface-mount, quick-connect, plastic housing, on casters, trolley-mounted

Norms
IEC, UL, ANSI, CSA, Tier 2 EU, Tier 1

Other characteristics
short circuit-proof, primary, safety, variable, secondary, control, compact, energy-saving, AC, zero sequence current, amorphous core, open-loop, vacuum impregnation, earth-leakage, ferrite, phase-shifting, K-factor, multi-winding, high-current, flameproof, waterproof, galvanically-isolated, dry type epoxy resin, high-accuracy, regulating, custom, with harmonic cancellation, low-loss, short-circuit, resonant, high-impedance, grounding, ultra-isolation, with copper windings

Primary voltage
Max.: 52,000 VMin.: 1,000 V

Secondary voltage
Max.: 10,000 VMin.: 200 V

Frequency
Max.: 60 HzMin.: 50 Hz
