نام محصول:
ترانسفورماتور فعلی
نام انگلیسی:
Current transformer SCT-0450-050
برند:
MAGNELAB
مشخصات:
Current Sensor Features
·UL-Listed
·Output 0.333 Volt AC at rated current
·Operates from 50 Hz to 400 Hz
·Phase displacement < 1.0° at rated current
·Accuracy Class 1.0
·8 ft. 18 AWG white/black leads
·Rated input of 50 Amp
·Custom output and other parameters are available
Description

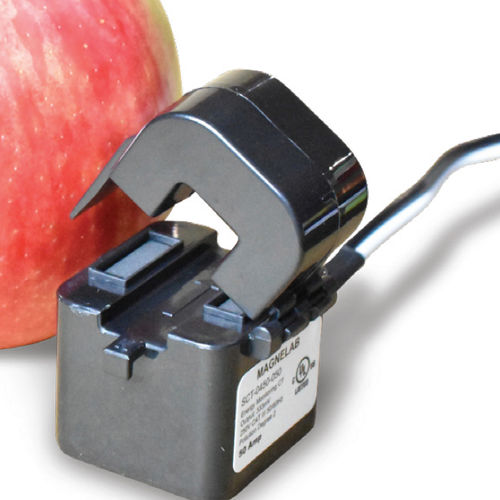

Magnelab’s new UL-Listed SCT-0450-050 split-core sensor measures AC current up to 60 Amps. The SCT-0450-050 meets IEC 61869-2 Class 1.0 and is UL-Listed according to UL 2808. The SCT-0450-050 is compact, performs well and is easy to install around existing conductors.
APPLICATIONS
• Energy and sub-metering
• Electrical load monitoring
• Network equipment
• Instruments and sensors
• Control systems
• Solar and renewable energy
توضیحات:
Type
current
Configuration
split-core
Applications
for energy meters, solar
Norms
IEC
Other characteristics
AC, compact, openable
Primary current
50 A
