نام محصول:
ترانسفورماتور فعلی
نام انگلیسی:

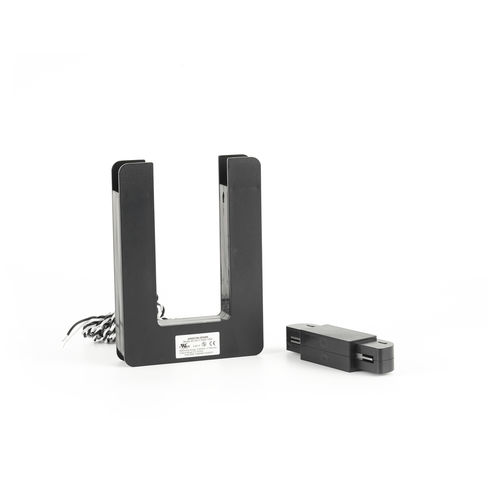

Current transformer XH-SCT-1250-CT
برند:
Jiangyin Spark Electronic Technology Co.,LTD
مشخصات:
UL2808 XH-SCT-1250 Split Core Current Transformer CTs
Specifications:
1.Rated current:0-600A
2.Rated output:mA or mV(0.333V)
3.Rated Voltage：0.66KV
4.Insulation Voltage：5400V
CATIII 600V or CATIV 250V
5.Rated Frequency：50HZ/60HZ
6.Operating Temperature：-35℃to 65℃
7.Flame resistance：UL94-V0
8.Leads : UL 1015 18AWG-22AWG
9.Certificates： UL2808 and IEC61010-1
Features:
1.Small cost
2.Split core design ,Easier installation
3 .Build diode ,no high voltage danger
4.Good linearity at very low current
Applications:
Power metering
Sub-metering for building, energy efficiency monitoring, consumption analysis, and cost allocation
Power quality monitoring for distribution system equipment
Condition monitoring for conveyors, pumps, etc.
Hybrid inverter for home energy storage
Distributed measurement systems
توضیحات:
Type
current
Configuration
split-core
Applications
for energy meters, for photovoltaic applications, substation, for inverters
Electrical characteristics
single-phase
Mounting
through-hole
Norms
IEC, RoHS, EN61558, UL
Other characteristics
AC
Secondary voltage
Max.: 3.3 V0.3 VMin.: 0 V
Primary current
Max.: 600 AMin.: 0 A
Secondary current
Max.: 600 mAMin.: 0 mA
Frequency
Max.: 60 HzMin.: 50 Hz
