نام محصول:
ترانسفورماتور فعلی
نام انگلیسی:

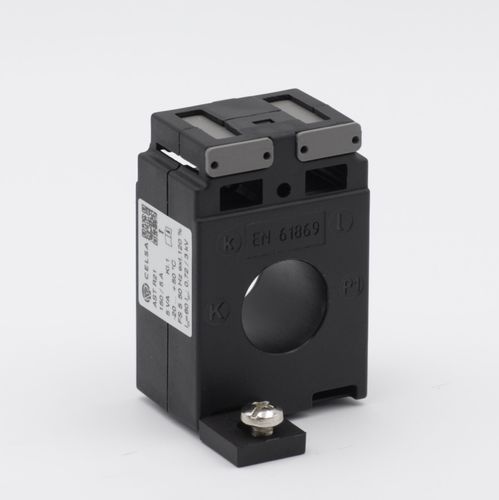

Current transformer EASTR21
برند:
Celsa Messgeräte GmbH
مشخصات:
• This calibrated current transformer is suitable for billing purposes
• The design is approved by the Physikalisch Technische Bundesanstalt (PTB) Braunschweig
• This transformer is mostly used for new installations, as the circuit has to be interrupted here
• Simply plug onto the primary conductor (no need for complex wiring)
• Currently the most compact design on the market, thus wonderfully suitable for the control cabinet
• Other areas of application are machine and plant construction
Scope of delivery
• 2 pc. Plug-in feet
• 2 pc. Secondary terminal covers (Grey)
Accessories
• Snap-on mounting for mounting rails EN 50022-35
• Cu sleeve for ASTR21 (…da=21mm, di=8,5mm, or di=12,5mm)
Special designs on request:
• any primary and secondary rated currents
• Cast resin grouting
توضیحات:
Type
current
Configuration
cast resin
Applications
for machinery
Mounting
DIN rail mount, plug-in
Norms
IEC, UL
Other characteristics
control, compact
Output power kVA
0.001 kVA, 0.0015 kVA, 0.002 kVA, 0.0025 kVA, 0.005 kVA(0.0014 hp, 0.002 hp, 0.0027 hp, 0.0034 hp, 0.0068 hp)
Primary voltage
1.2 kV
Secondary voltage
720 V
Primary current
Min.: 100 AMax.: 500 A
Secondary current
1 A, 5 A
Frequency
50 Hz, 60 Hz
