نام محصول:
ترانسفورماتور زمینی
نام انگلیسی:
Grounding transformer
برند:
Acutran Transformers
مشخصات:

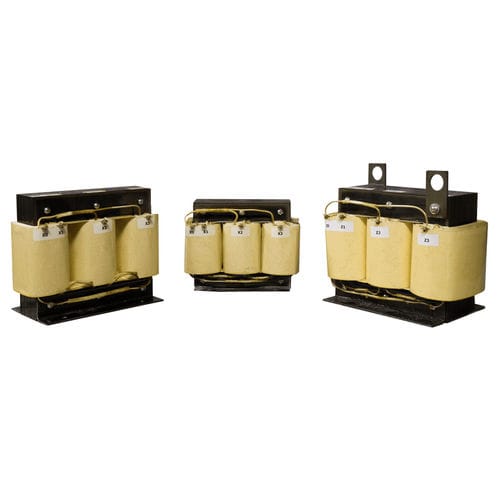

Dry-type zig zag grounding transformers are another example of Reliable Custom Transformers being built by Acutran.
Neutral grounding dry-type transformers are special purpose transformers that provide a grounding path for a delta connection or an ungrounded wye.
Generally used to protect an isolated 3-phase system in the event of a line-to-ground fault, grounding transformers provide a lower impedance path-to-ground for ground faults which shields the non-faulted phases from voltage spikes.
Neutral grounding transformer units aren’t typically used in commercial or industrial applications because they do cost a little more than your conventional dry-type transformer. But if you need a ground – this is the way to go.
Get a Quote Now »
Acutran Custom Neutral Grounding Transformer Features
• Zig zag or single phase w/ grounding resistor configurations
• 50, 60 & 400Hz
• Up to 25kV
• Copper or aluminum windings
• UL-recognized insulation system for 600V class up to 220oC
• Custom continuous amperage sizing and fault current carry times
• Custom ohms/phase design ability
• Custom enclosures with strip heaters and thermostats to reduce condensation
How to Spec a Zig Zag Transformer
• Continuous neutral current
• Neutral fault current and duration
• Line voltage and BIL
• Impedance requirement
• Temperature rise
• Enclosure type
• Special items
توضیحات:
Type
power
Configuration
dry
Applications
for industrial applications
Electrical characteristics
three-phase
Other characteristics
with copper windings, custom, grounding
