نام محصول:
ترانسفورماتور توزیع
نام انگلیسی:

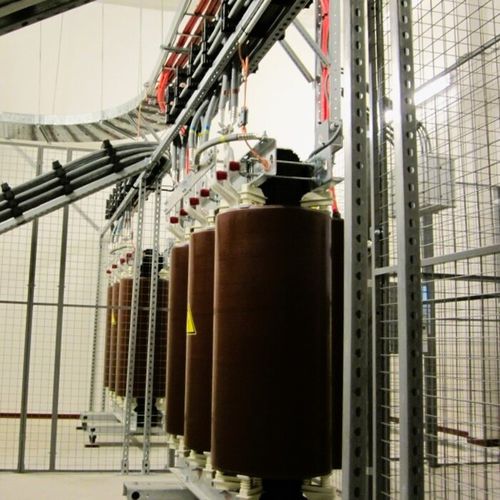

Distribution transformer ECODIS20
برند:
Groupe SANERGRID
مشخصات:
Description of the TrafoELETTRO ECODIS20™ standard range:
Standard standardized power from 160 up to 3150 KVA. For power ratings up to 25MVA, please consult our special ECOTRAFO-SP™ range.
Frequency: 50 Hz, DYN11 coupling
Short-circuit voltage: 6%. For special UCCs, consult our ECOTRAFO-SP™ special range.
Rated insulation voltage: 24 kV. For insulation voltages of 15 or 36 kV consult our ECODIS15™ and ECODIS36™ ranges. For 15/20kV dual-voltage transformers, consult our ECODIS-BI1520™ range.
Rated impulse withstand voltage: 125 kV BIL2, for BIL1 at 95kV please consult us.
Protective enclosure: if you don’t want to stay in IP00, we design and manufacture our IP or protective enclosures. For the ECODIS20™ range, we offer IP31 to IP43 enclosures. For custom enclosures, IP54 or adaptations of busbars or plug-in terminals to IP roofs please refer to the IP-TRSEC-SP range.
Included by default: 4 lifting rings, 4 swivel-mounted rollers, off-load off-load voltage adjustment bars on HV side +/- 2×2.5; routine tests
Standard connection: HV from above or below, LV from above.
توضیحات:
Type
distribution
Configuration
cast resin
Applications
for industrial applications, for offshore applications, for mining equipment, for rolling mills
Electrical characteristics
three-phase, high-voltage
Electric power
Max.: 100,000 WMin.: 1 W
Primary voltage
Max.: 36,000 VMin.: 1,000 V
Secondary voltage
Max.: 20,000 VMin.: 100 V
