نام محصول:
بلوک توزیع قرقره
نام انگلیسی:

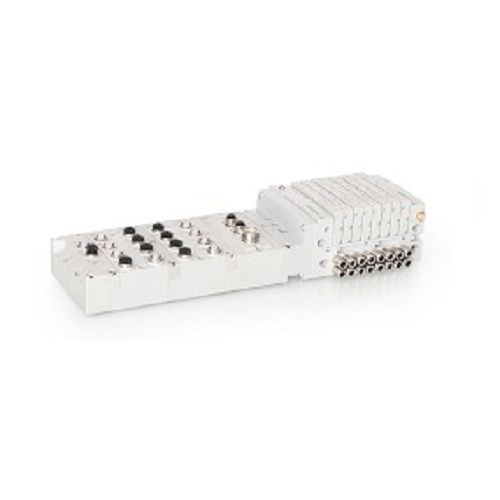

Spool distribution block AVENTICS™ 501
برند:
ASCO
مشخصات:
The AVENTICS Series 501 is a line of general purpose automation valves designed for directional control and piloting applications requiring compact size, high flow capability, and energy savings. Engineers can achieve the flow of a 15 mm to 20 mm valves in a more compact package, saving space, cost, and energy in their machine designs. In addition, no other valve in its class offers such a broad range of pressure regulator, pressure shut-off, and exhaust flow control accessories. The 501 Series valve’s pressure shut —off option permits users to replace individual valves without stopping their production process — reducing line downtime and maintenance.
Features
Modular design permits easy configuration and modification
Sub-base mounted valve is well suited for in-panel valve piloting applications
High flow rate, compact size, and optional mounting plate enable efficient use of cabinet space
Dual three-way version enables placement of two, three-way valves in the space of a four-way valve
Compatible with AVENTICS Series G3 and 580 electronic fieldbus platforms
580 CHARM node is compatible with DeltaV™ distributed control system with electronic marshalling
توضیحات:
Type
spool
Actuating method
solenoid-operated
Ports/positions
3/2-way, 5/3-way, 5/2-way
Other characteristics
fieldbus, modular, compact
Operating pressure
Max.: 8 bar(116.03 psi)Min.: 0 bar(0 psi)
Flow rate
Max.: 470 l/min(124.2 us gal/min)Min.: 360 l/min(95.1 us gal/min)
