نام محصول:
بلوک توزیع قرقره
نام انگلیسی:

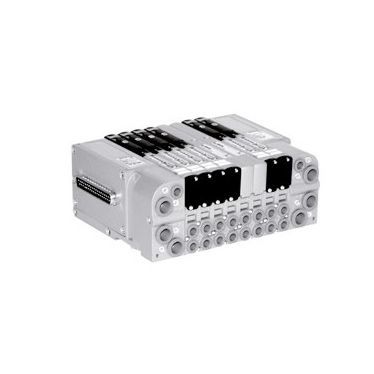

Spool distribution block JUNO.S
برند:
ALPHA AUTOMATISMES Sarl
مشخصات:
Pneumatic distribution island -Distributor terminal
– Flow rate up to 550 Nl/min.
– Valve thickness: 12.5 mm.
– Identical dimensions for monostable and bistable solenoid valves.
– Can be connected to subbases with instant fittings Ø4, Ø6 or
Ø8 mm instant fittings.
– Batteries up to 11 bistable or 22 monostable on a Sub-D 25 connector.
– Batteries up to 16 bistable or 32 monostable on a Sub-D 37 connector.
– Connection with Sub-D 25 or Sub-D 37 connector.
– Spool valves can be replaced without disconnecting the pneumatic wiring.
– Available functions: 5/2 monostable – 5/2 bistable – 5/3 – 2×3/2 (NC/NC – NO/NO – NC/NO).
توضیحات:
Type
spool
Actuating method
pneumatic, electrically-operated
Ports/positions
5/2, 5/3
Other characteristics
standard, fieldbus, modular, compact, base-mounted, plug-in, monobloc
Operating pressure
10 bar(145.04 psi)
Flow rate
550 l/min(145.3 us gal/min)
