نام محصول:
بسته برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:

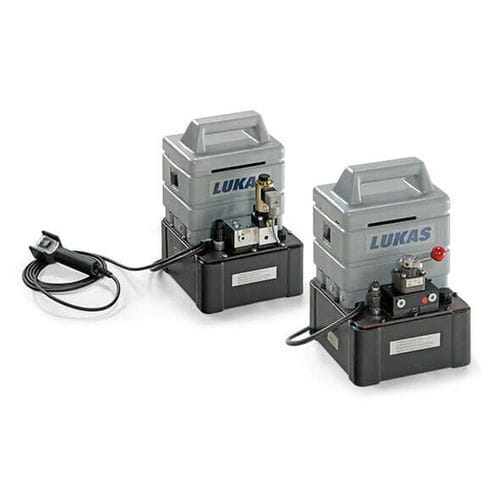

Electrically-powered hydraulic power pack PO 4 series
برند:
LUKAS Hydraulik GmbH
مشخصات:
With the compact motor pumps from the PO 4 series, you are ideally equipped if you frequently have to drive small and medium-sized cylinders at different locations. The compact power packs perform reliably, even for longer periods of time.
Variants:
•Version N3 for single-acting cylinders
Sensitive extension and positioning of the load. The load can be held even when the motor is switched on (pressureless oil circulation). Can be retracted with the motor switched on or off.
•Version N4 for double-acting cylinders
Extending and holding the load is possible with the motor switched on (unpressurised oil circulation). Retracting only works with a switched on motor.
•Version L 2/2 – without load-holding function
Motor starts when the remote control is actuated, solenoid valve closes. The connected hydraulic cylinder extends as long as the button remains pressed. To retract, release the button, motor stops, solenoid valve on “idle”, cylinder retracts with spring return.
•Version G 2/2 – with load-holding function
Remote control with 3-position switch
Advantages
•Portable and especially designed for mobile applications
•Durable and low-maintenance
•Constant high-pressure delivery up to maximum pressure
•LUKAS radial piston pump with suction valves for constant flow rate
•Switch-over pressure for quick extension without load
•Power unit with remote control (switch on/off in jog mode)
•Cable length 3 m
توضیحات:
Power source
electrically-powered
Applications
high-pressure, for mobile machines
Other characteristics
compact, portable
Operating pressure
500 bar, 700 bar(7,252 psi, 10,153 psi)
Nominal power
0.6 kW(0.8 hp)
Flow rate
0.24 l/min(0.06 us gal/min)
Tank capacity
4 l(1.06 gal)
