نام محصول:
بسته برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:
Electrically-powered hydraulic power pack H series
برند:
HAWE Hydraulik SE
مشخصات:

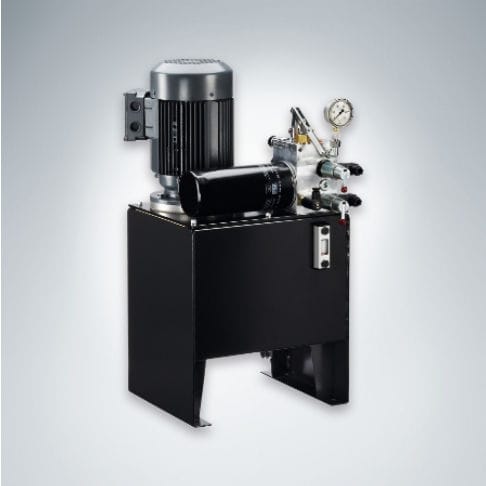

The compact hydraulic power pack type H consists of the tank, an integrated motor and the gear pump directly attached to the motor shaft. This compact design results in a very small installation package. The pump carrier comes with an integrated pressure-limiting valve as standard.
By directly mounting valve banks, compact control systems can be set up quickly and easily. Variants with integrated valves for a lift/lower function are also available.
Features and advantages
Easily accessible attachment and connection options
Tank for hydraulic fluid is powder-coated inside and outside
Manual pressure release using emergency drain valve
Consumer ports on one side
توضیحات:
Power source
electrically-powered
Applications
lifting, handling, tank
Other characteristics
compact
Nominal power
Max.: 1.5 kW(2 hp)Min.: 0.4 kW(0.5 hp)
Flow rate
Max.: 4 l/min(1.06 us gal/min)Min.: 0.7 l/min(0.18 us gal/min)
Tank capacity
2 l, 4 l(0.53 gal, 1.06 gal)
