نام محصول:
بسته برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:
Electrically-powered hydraulic power pack CPU
برند:
HAWE Hydraulik SE
مشخصات:

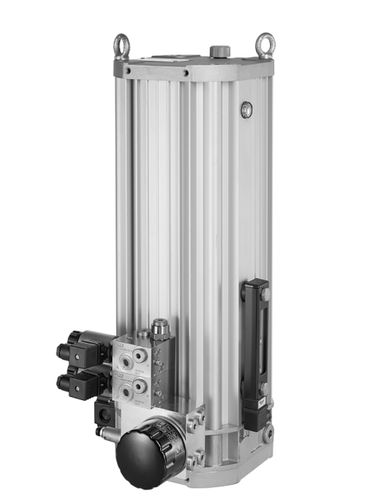

The compact hydraulic power pack type CPU consists of the tank, the integrated motor and the radial piston or gear pump directly attached to the motor shaft. The compact design that this achieves is a crucial advantage compared to conventional hydraulic power packs.
Compatible, ready-for-connection, complete solutions can be assembled easily using a wide range of connection blocks and the valve banks that can be combined with them.
The compact hydraulic power pack CPU is suited for nominal operating modes S2 (short period operation) and S2 (intermittent operation).
The special feature of the CPU is the housing made of aluminium, which makes possible a lighter design compared to other compact hydraulic power packs. It is conceived for large series and designed for cost efficiency with its limited range of variants.
Features and advantages
Excellent price-performance ratio
Resource-saving due to small oil filling volume
Vertical and horizontal installation possible
توضیحات:
Power source
electrically-powered
Applications
for machine tools, handling, for wind turbine
Other characteristics
compact
Operating pressure
Min.: 0 bar(0 psi)Max.: 350 bar(5,076 psi)
Nominal power
0.4 kW, 0.8 kW(0.5 hp, 1.1 hp)
Flow rate
Min.: 0.31 l/min(0.08 us gal/min)Max.: 13.04 l/min(3.44 us gal/min)
Tank capacity
12.6 l(3.33 gal)
