نام محصول:
بسته برق هیدرولیک با نیروی الکتریکی
نام انگلیسی:
Electrically-powered hydraulic power pack A series
برند:
HAWE Hydraulik SE
مشخصات:

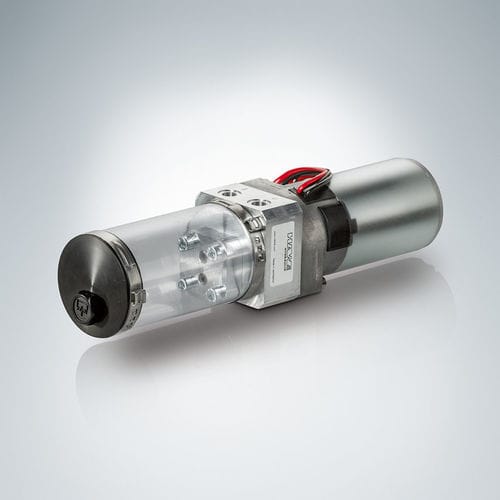

The Type-A compact hydraulic power pack is characterised by a modular design. An external gear pump is flange-mounted onto the equipment rack in the hydraulic power pack. The oil tank is a round, plastic tank with an M 14×1.5 filling screw.
Version A100 comes with a choice of two equipment racks (Q and H), which can be used to mount a range of motors, pumps and tanks. The Type-TLC and SL valve banks in the modular system can be used to build ready-for-connection complete solutions.
Features and advantages:
DC and AC power supply
Suitable for short period operation
Can be installed flat or upright
Quiet running
توضیحات:
Power source
electrically-powered
Applications
oil, for automobiles, pump
Other characteristics
compact, mini, low-noise, modular
Operating pressure
Max.: 210 bar(3,046 psi)Min.: 0 bar(0 psi)
Nominal power
250 W(0.3 hp)
Flow rate
Max.: 3 l/min(0.79 us gal/min)Min.: 0 l/min(0 us gal/min)
Tank capacity
Max.: 0.8 l(0.21 gal)Min.: 0.2 l(0.05 gal)
