نام محصول:
بسته برق آچار هیدرولیک گشتاور
نام انگلیسی:

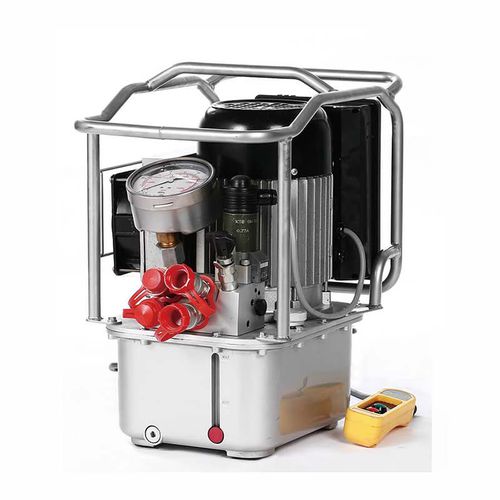

Torque wrench hydraulic power pack SP304 series
برند:
Pingyuan Jingke Hydraulic Co., Ltd
مشخصات:
Application: Used for hydraulic torque wrench
Stage: 3 stage
Brand: TorcStark
Origin: Made in China
Warranty: One year
Packing: Double packing, Aluminium plastic box + wooden box
Delivery time: within 15 days
*High efficiency 3 speed flow pressure design, perfect simulation of manual operation,
fast speed when light load, low speed when heavy load, the bolt tightening is more precise.
*It can drive 2 hydraulic wrenches simultaneously or 4 if requested.
*Al-Ti alloy pump body, light weight and easy to carry.
*40-700 bar adjustable output pressure.
*Brushless high power motor, easy maintenance and long life, with starting capacitor, able to start with load, simple operation.
*High performance radiator, the fan starts automatically when oil temperature reaches 35 degree.
Vibration proof pressure gauge calibrated with dual scale reading for Mpa and psi, accuracy grade 1.0
Smart oil temperature adjustment fan cooling system allows slower oil temperature increasing causes the pump station continuously running longer
High-precision, integrated design for easy replacement and maintenance
Compact manual pendant with two push-buttons with 5m cord
110V/220V available
4 port available
Brushless DC motor
High performance heat radiator
توضیحات:
Power source
with DC motor
Applications
for torque wrenches
Other characteristics
compact, with cooling system, custom, portable
Operating pressure
Min.: 60 bar(870 psi)Max.: 700 bar(10,153 psi)
Nominal power
1,100 W(1.5 hp)
Flow rate
Min.: 0.8 l/min(0.21 us gal/min)Max.: 8 l/min(2.11 us gal/min)
Tank capacity
8 l(2.11 gal)
