نام محصول:
بانک خازن ولتاژ بالا

نام انگلیسی:

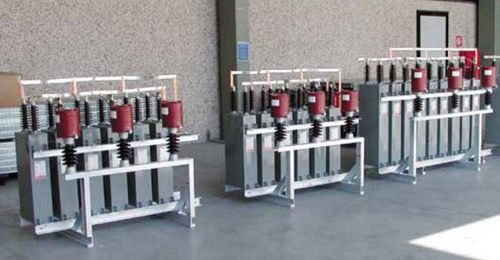

High-voltage capacitor bank BMT series

برند:
Enerlux

مشخصات:
The range of BMT type capacitor banks offers various solutions for industrial power factor correction thanks to the many combinations that can be made:

small and high powers;

working voltages greater than 24 kV obtained with overlapping frame structures (see the following paragraphs);

indoor and outdoor installations;

constructions on fully open structures (IP rating 00) or in special boxes (for powers up

to 14.4 Mvar-24 kV also with degree of protection IP 54);

different levels of insulation;

operation under harsh working and environmental conditions;

making filters for harmonics;

special user requirements.

In addition, the BMT type capacitors banks offer several advantages:

easy installation operations thanks to the complete line of accessories offered;

optimization of the installation thanks to the systems fitted for connections to the various systems;

simplification of the transport and handling operations thanks to the construction in compact and versatile structures;

easy maintenance operations;

different possibilities of making the frames, including hot galvanized steel or stainless steel frames (for especially corrosive environments).

The BMT banks are composed of a number of single-phase capacitors that are assembled and interconnected in order to obtain greater power; the connection is normally delta with insulated neutral.ì

In addition to the capacitors and frame, the supply normally includes:

post insulators (see following paragraph);

connection bars;

protection via transformer and unbalance relay;

damping reactors.

توضیحات:
Electrical characteristics
high-voltage
