نام محصول:
بانک خازن تصحیح فاکتور قدرت

نام انگلیسی:

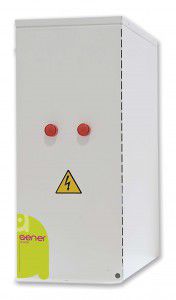

Power factor correction capacitor bank FT55 series

برند:
AENER ENERGIA

مشخصات:
The FT55 Series is an equipment specially designed for fixed
motor engines reactive energy compensation, incorporating some
appropriated operating protection devices. Its design makes it the ideal component for the construction of automatic capacitor banks of high power. A three-phase thermo-magnetic circuit breaker protection and a duty contactor is included, so it is a one-step module for the assembling of automatic capacitor banks. AENER´s capacitors fitted in our equipments are totally manufactured free of PCB and do not contain toxic substances. AENER´s capacitors are totally protected against over voltage or ageing at the end of the capacitor’s useful service life.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT

Rated voltage: 440 V 50 Hz.
Maximum permissible current: 1,3 In.
Tolerance of capacitance: -5 +15%. Dielectric losses: 120.000 h.
Temperature range inside the equipment: Max. 55ºC / Min. -25ºC.
Self-Healing. Delta internal connection. Inside discharge resistor. Metal box.
Safety device: Built-in. Three-phase automatic thermo-magnetic circuit contact breaker. Capacitor duty contactor. Capacitor and contactor onlineindicator lamp.
Other power ratings, voltages or frequencies available upon request.

توضیحات:
Electrical characteristics
three-phase

Other characteristics
for power factor correction
