نام محصول:
باتلاق مثانه
نام انگلیسی:

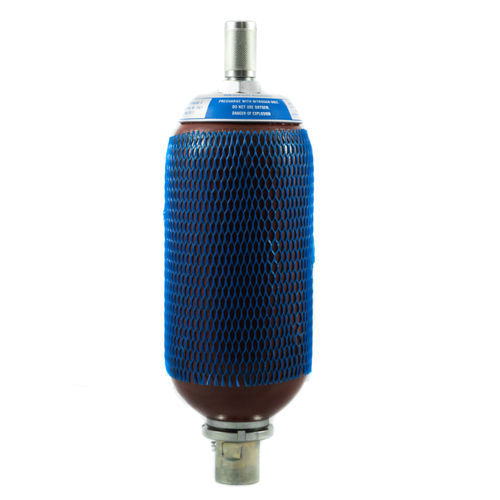

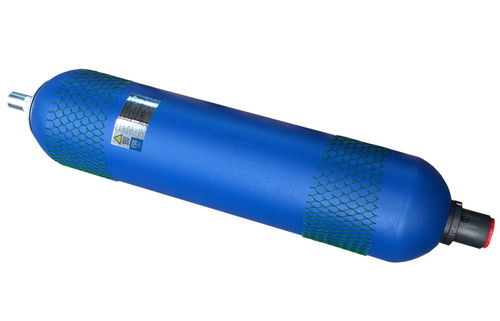

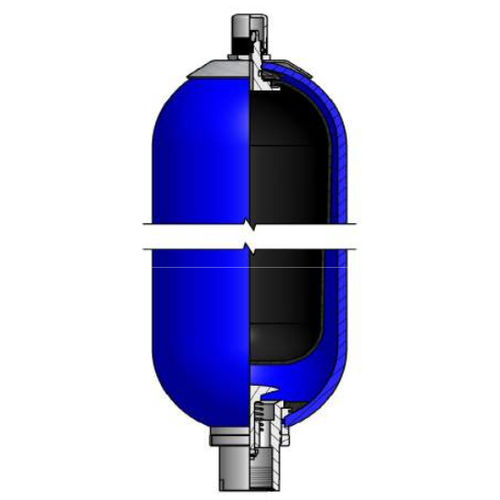

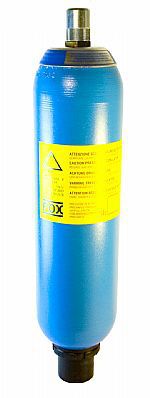

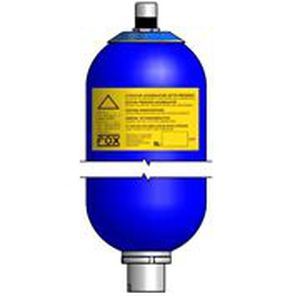

Bladder accumulator HB series
برند:
Fox S.r.l.
مشخصات:
Maximum working pressure (PS): 350-480-690 bar
Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: forged steel, sand and painted
Standard nitrogen valve : ⅝” UNF
Working temperature (TS): -20°C ÷ +80°C
Standard bladder: can be used with mineral
oils and non corrosive fluids
Installation: horizontal / vertical (nitrogen valve upward)
Compression ratio:
– recommended: P2/P0 = 2.5
– maximum: P2/P0 = 4
Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature.
Warranty: see dedicated page
Spare parts: see dedicated page
Special execution:
– Inside and outside epoxy painted as per standard FOX procedure or as project specification
– Internal lining in different materials
– Bladders in HNBR, EPDM, FPM
– Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
– Special connection on request
– Execution 480 Bar / 690 Bar
– Execution with nitrogen/poppet valve in inox
– Execution for additional nitrogen bottle
– Accumulators technically and dimensionally interchangeable with other brands of same type
توضیحات:
Technology
bladder
Application
for mineral oil, for non-aggressive fluids
Other characteristics
hydro-pneumatic, flange-mounted
