نام محصول:
ایستگاه پمپاژ سیال

نام انگلیسی:
Fluid pumping station

برند:
Satisloh

مشخصات:

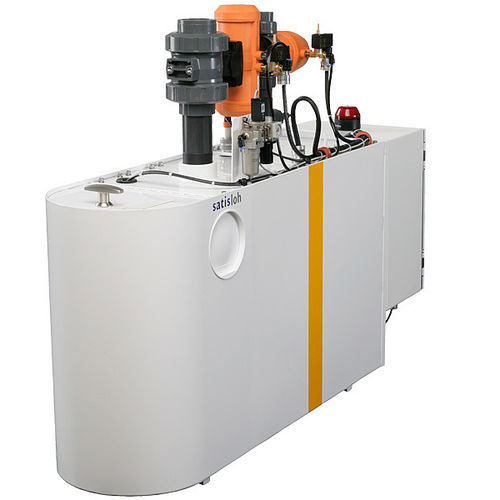

The Pump Station automatically pumps all fluid, tape, chips, and long turning strands via overhead pipeline to the remote chip compactors or chip separators at the coolant management system.

Pump Station to expand automation and optimize waste management

Using Satisloh’s Pump Station eliminates the need for tanks and debris bins in the surfacing area. With the smallest footprint possible, it allows positioning between conveyors.

The Pump Station features a lens debris and fluid pumping system.

It is available as integrated and standard pump station.

It is used with Microseparator® HC1, HC3 or HC6 systems. All fluid and lens debris is pumped from the generator overhead via plastic pipe to the remote Chip Separator or Compactor Assembly.

It is compatible with all organic milling debris and all organic finishing debris.

To be used with one generator. Best suited for VFT-orbit-2 and VFT-orbit-2E (Integrated Pump Station).

Includes: stainless steel pump and housing, fabricated steel enclosure with lens retrieval access cover, PLC control panel, automatic level control system, automatic valve for supply pipeline, automatic valve for discharge pipeline.

Working range: –

Supports 1 digital lens generators

Used with Microseparator® HC1, HC3 or HC6

Lens material: – All standard organic materials

Dimensions (wxdxh): – 310 x 1170 x 824 mm / 13 x 43 x 33 inches

Weight: – 80 kg / 176 lbs

توضیحات:
Applications
fluid
