نام محصول:
اگزکتور ونتوری بدون روغن
نام انگلیسی:
Oil-free Venturi ejector ENER-JET
برند:
Nash
مشخصات:

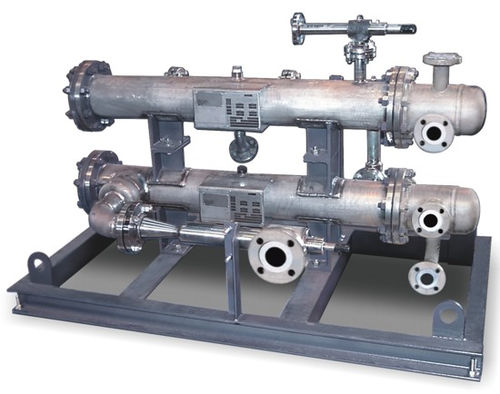

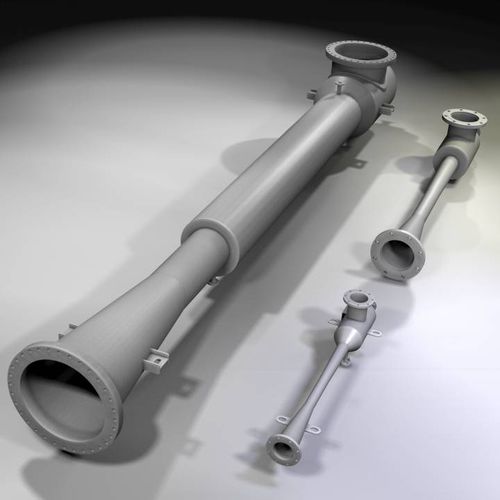

Since 1979, Nash has manufactured the most efficient steam jet ejectors, recognized worldwide for delivering reliable performance and lower emissions. Our ejectors have the ability to handle large volumes at very high vacuum levels and can be optimized to contribute to process enhancements and operational efficiency. Steam and air ejectors are the ideal solution for industries including oil & gas, chemical, and electrical power.
Reliable and Efficient with Proven Performance
With an innovative design that reduces steam consumption up to 15%, compared to the previous Nash ejector design, an ENER-JET Steam and Air Ejectors can pay for itself in two years or less due to energy savings. In addition to potential cost savings, such an installation can also reduce greenhouse gas emissions.
Optimizable based on specifications
Our Steam and Air Ejectors can be optimized in a variety of ways based on initial cost, payback period, or utility limitations. Additional efficiency benefits can come from pairing ejectors with liquid ring vacuum pumps to create an ENER-JET Hybrid Vacuum System. Our experienced team of application engineers can optimize a hybrid system specific to your process, application, and technology requirements to deliver maximum efficiency and performance benefits.
Key advantages:
Simple in construction
Relatively easy to maintain
Available in a wide variety of materials
Low investment, high utility cost
No moving parts
Good for low MW gases
توضیحات:
Lubrication
oil-free
Number of stages
single-stage
Applications
for the chemical industry, for gas
Other characteristics
large, steam jet
Ultimate vacuum
Max.: 1,000 Torr(19.34 psi)Min.: 0.1 Torr(0 psi)
Flow rate
Max.: 10,000 m³/h(353,146.67 ft³/h)Min.: 0 m³/h(0 ft³/h)
