نام محصول:
اگزکتور ونتوری بدون روغن

نام انگلیسی:

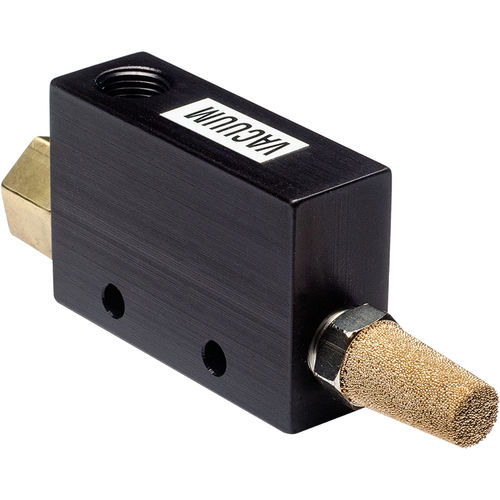

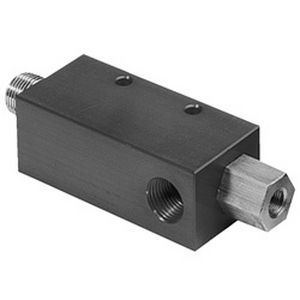

Oil-free Venturi ejector VG-010-00-00

برند:
GAST

مشخصات:
Max Flow 1.0 cfm ( 1.6 m3/h )

Max Vacuum 27.0 in-Hg ( 99.0 mbar abs )

Weight 0.1875 lbs ( 0 kg )

Min Temperature 4 °F ( -15 °C )

Max Temperature 125 °F ( 52 °C )

Max Speed 40 rpm

Product Details

The VG-010-00-00 series is compact in size and very easy to install. They have a lightweight construction and operate on shop air, so they’re very economical to use. Constructed with no moving parts, these Gast vacuum generators require minimal maintenance and operate very quietly.

Superior Control

Vacuum levels are controlled by adjusting inlet pressure and generators can be cycled on and off by controlling inlet pressure rather than by regulating the vacuum line through venting to atmosphere. Maximum performance and lowest noise is achieved at stated optimum inlet pressure.

Minimal Maintenance

Plan for virtually no down time. The units can be flushed with soap and water and reassembled in 2 minutes – all without removing the generator from its mounting location.

Low Cost

Pricing that’s well below foreign imports is only part of the picture. Combined with ease of installation, control and maintenance, it means that your total investment is far less when you use Gast Manufacturing vacuum generators.

توضیحات:
Lubrication
oil-free

Number of stages
single-stage

Other characteristics
compact

Ultimate vacuum
Max.: 99 mbar(1.44 psi)Min.: 0 mbar(0 psi)

Flow rate
Max.: 1.6 m³/h(56.5 ft³/h)Min.: 0 m³/h(0 ft³/h)
