نام محصول:
اگزکتور ونتوری بدون روغن
نام انگلیسی:

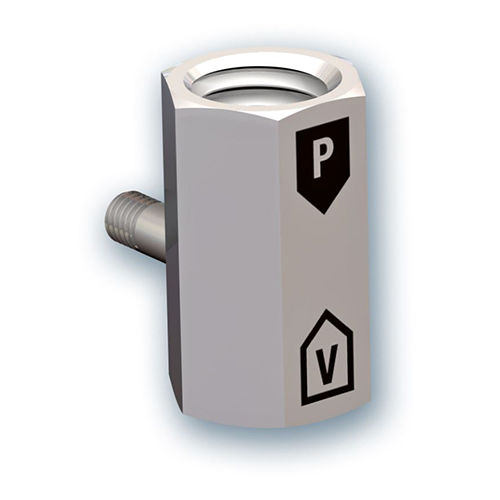

Oil-free Venturi ejector VR series
برند:
COVAL
مشخصات:
Heavy-duty in-Line Ejectors, VR series
. 2 models
. Ø Nozzle : 0.5 ; 0.7 ; 0.9 ; 1 ; 1.2 ; 1.4 mm
. Maximum vacuum : 85%
. Air drawn in 64 Nl/min
. Weight between 20 and 45 g
The main advantage of the VR series in-line ejectors is that they can be mounted directly on the suction cup, which simplifies wiring.
By integrating the ejector into the suction cup we obtain a localized vacuum and, therefore, the possibility of obtaining multiple independent grips, even in the absence of objects.
It is also possible to supply vacuum to two or more suction cups using a 1/8 Gas or 1/4 Gas T-shaped fitting.
Advantages
.Wide range
.Adaptable to all industries
.Lightweight and compact
.Reduced gripping time
.Direct installation on suction cups
.Excellent mechanical resistance
.Blow-off option
.Extended range of suction flow rates
.No clogging
.Silent operation
Further Informations
Customized on request
.Alternate material option: stainless steel or plastic, based on specifications.
.Special characteristics such as suction flow rate or vacuum level.
.On request for the F18 model, M5 ancillary vacuum fitting for connection of a vacuum switch.
New function

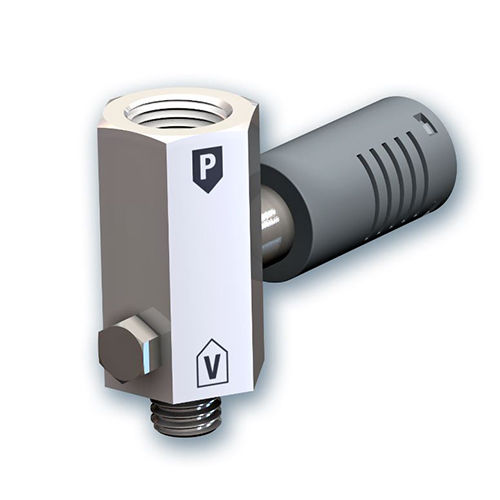

.Silencer option: (ref. SILGV10M5F)
.Vacuum or blow-off switch, on request.
Options
Vacuum outlet: M6: M6, female
M18: 1/8 gas male
M14: 1/4 gas male
F18 : 1/8 gas female
F14: 1/4 gas female
توضیحات:
Lubrication
oil-free
Number of stages
single-stage
Applications
for robots, for the plastics industry, for pharmaceutical applications, for machines, for food
Other characteristics
compact, pneumatic, small, vertical, miniature
Ultimate vacuum
-850 mbar(-12.33 psi)
Flow rate
Max.: 64 l/min(16.91 us gal/min)Min.: 7 l/min(1.85 us gal/min)
Operating temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
Weight
Max.: 50 g(1.76 oz)Min.: 20 g(0.71 oz)
