نام محصول:
اژکتور خلاء مدولار
نام انگلیسی:

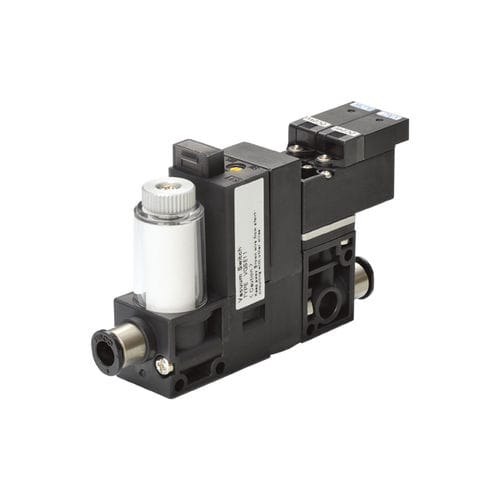

Modular vacuum ejector VG series
برند:
NIHON PISCO CO., Ltd.
مشخصات:
Vacuum generator, air supply/blow-off solenoid valve and vacuum switch modules can be combined depending on vacuum system
Vacuum generator, air supply/blow-off solenoid valve and vacuum switch modules can be combined depending on vacuum system
Three types of vacuum switches are provided.
1 switch output +1analog output type, 2 switch outputs type and 1 analog output economial type are provided.
توضیحات:
Number of stages
single-stage
Applications
industrial, for robots, for automobiles, for machines, for medical applications, for conveyor, for the plastics industry, for food products, for pneumatic conveying
Other characteristics
modular, pneumatic, with push-in fitting
Ultimate vacuum
Max.: -660 mbar(-9.57 psi)Min.: -930 mbar(-13.49 psi)
Flow rate
Max.: 34 l/min(8.98 us gal/min)Min.: 7 l/min(1.85 us gal/min)
Operating temperature
Max.: 50 °C(122 °F)Min.: 5 °C(41 °F)
