نام محصول:
انزوا
نام انگلیسی:

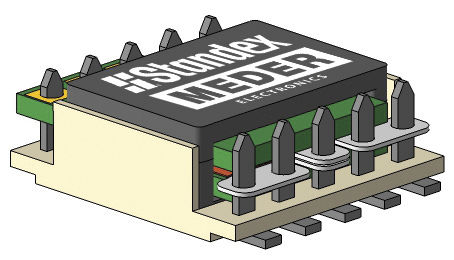

Isolation transformer P025 10W-50W
برند:
StandexMeder Electronics GmbH
مشخصات:
P025 Planar Transformers (10W to 50W)
Patented (U.S. PAT. 7,129,809) design with superior thermal management
Rated power 10W-50W / Frequency range 300-500kHZ
Surface mount (SMD) or through hole (TH)
Topology – Forward (w/active rest), Flyback
Current rating max. SMD=20A, TH = +30%
Isolation voltage pri-sec/pri-core 500-2,000VDC
Soft switching, single or multiple outputs
Different switching frequencies, input/output voltages
Primary turns – other number (no fractions)
Secondary Ns1, Ns2 / Ns3 turns 1- 8 (no fractions)
Thermal solutions heat sinks, etc.
توضیحات:
Type
isolation
Electrical characteristics
single-phase
Mounting
through-hole
Other characteristics
planar
Electric power
Max.: 50 W(0.068 hp)Min.: 10 W(0.0136 hp)
