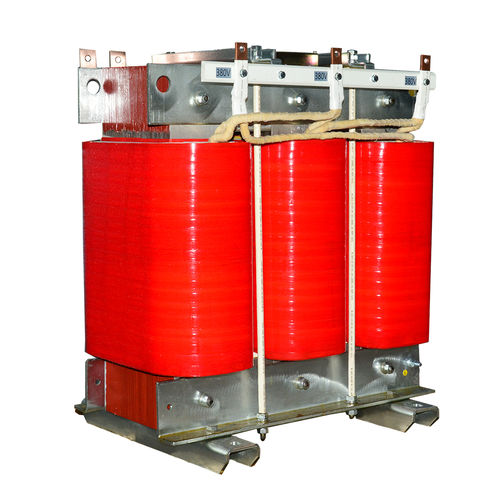

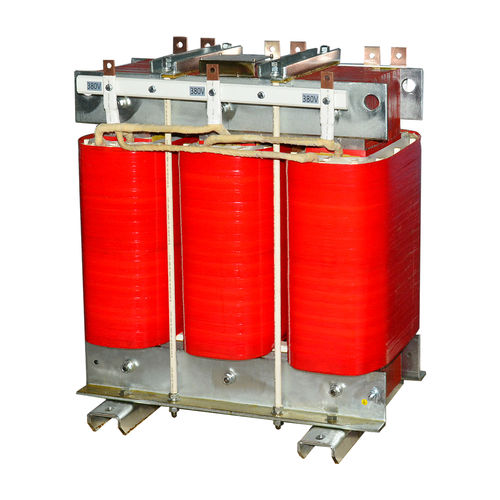

انزوا – Shenzhen Sikes Electric Co., Ltd. – Isolation transformer SKS-SGA-YH100/0.38

نام محصول:
انزوا

نام انگلیسی:
Isolation transformer SKS-SGA-YH100/0.38

برند:
Shenzhen Sikes Electric Co., Ltd.

مشخصات:
Power Isolation transformer:

Power isolation transformer refers to the input and output winding with electrical isolation transformers, it can avoid accidental hit at the same time transformer can isolate the former vice edge coil current.

Power isolation transformer are widely used in electronic industry, mining enterprises, machine tools, equipment in general circuit of control power, security lighting and the power of light.

Characteristic of this series：

1.Power range: 30KVA-1000KVA;

2.Phase: Three phase;

3.Primary voltage: 220V/380V;

4.Secondary voltage: 380V/220V;

5.Frequency: 50/60Hz;

6.Fixing system: Angles DIN 41307;

7.Winding: Enamelled copper wire class F/H, separated primary and secondary(galvanic separation);

8.Protection class: IP00 or as customer required;

9.Insulation class: F/H;

10.Standard: According to EN61558-2-6.

Warning of Power Isolation transformer:

Environment exists without gas, steam, chemical deposition, dust or dirt. Explosive or corrosive medium is not allowed. Outer casing could be desiged as required.

توضیحات:
Type
isolation

Configuration
encapsulated

Applications
for electronics, for railway applications, for mining equipment

Electrical characteristics
three-phase

Output power kVA
100 kVA(135.9621 hp)

Primary voltage
380 V

Secondary voltage
222 V, 385 V

Frequency
50 Hz
