نام محصول:
انزوا
نام انگلیسی:

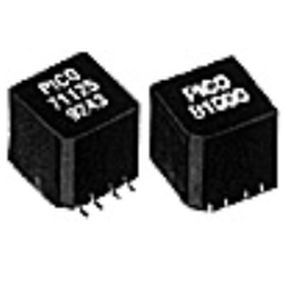

Isolation transformer 71003
برند:
Pico Electronics
مشخصات:
PICO surface mount units utilize materials and methods to withstand extreme temperatures of vapor phase, I.R., and other reflow procedures without degradation of electrical or mechanical characteristics.
Specifications
MIL-PRF-27: All units manufactured to MIL-PRF-27, Grade 5, Class S.
DIELECTRIC STRENGTH: All units tested at 200 V RMS.
INSULATION RESISTANCE: Greater than 10,000 Megohms at 300 V DC.
WEIGHT: 3 Grams
TERMINALS: Solderability per MIL-STD-202, Method 208.
THERMAL SHOCK: 25 Cycles, Method 107, MIL-STD-202, Test Condition -55º C to +130º C.
MOISTURE SENSITIVITY LEVEL: MSL3
FEATURES:
Extreme resistance to thermal shock
Ultra Miniature size
PICO is approved QPL source (MIL-PRF-27)
Magnetic shield design available
Electrostatic shielding can be added
Variation of standard designs available
Every unit in this catalog can be made with a 300 thermal cycle guarantee using PICO’s special SR construction.
Contact factory for details.
توضیحات:
Type
isolation
Configuration
encapsulated
Applications
audio
Mounting
through-hole
Norms
MIL-STD
Electric power
Min.: 0.062 WMax.: 0.75 W
Primary current
Min.: 0.5 AMax.: 31.6 A
Frequency
Min.: 400 HzMax.: 100,000 Hz
