نام محصول:
انزوا
نام انگلیسی:

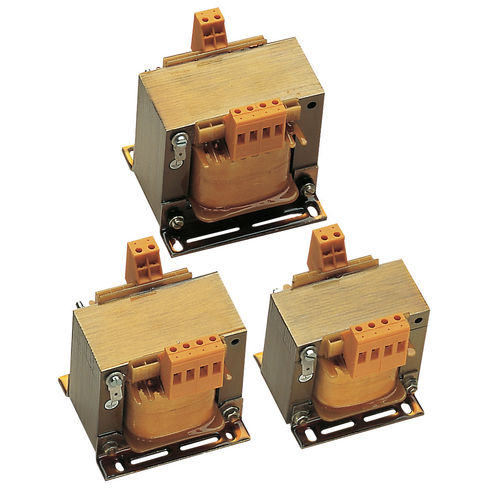

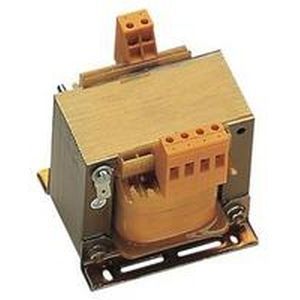

Isolation transformer SU series
برند:
Noratel China Ltd
مشخصات:
safety isolating / Control Transformer, IP00
Open single-phase safety isolating transformer designed and tested according to norm EN61558-2-6. Separate insulated windings and protected against dust, humidity and corrosion through complete impregnation in heat tempered varnish. For fixed installation in cabinets or switchboards. The transformer is designed according to DnV, Lloyds register of shipping and Bureau Veritas standards witch require 45°C ambient temperature. Industrial transformer designed for low voltage installation in processing industry and switchboards, class I. The transformer has to be mounted in cover. Uncovered installation prohibited. Special designed metal plate covers available (Type SUK). The transformer must be protected against short circuit and overload with separate fuse arrangement.
Applications:
Industrial transformer designed for low voltage installation in processing industry and switchboards, class I. The transformer has to be mounted in cover.
Uncovered installation prohibited. Special designed metal plate covers available (Type SUK). The transformer must be protected against short circuit and overload with separate fuse arrangement.
توضیحات:
Type
isolation
Configuration
dry
Applications
industrial
Electrical characteristics
single-phase
Norms
EN61558
Other characteristics
safety, control
Output power kVA
Max.: 1 kVA(1.3596 hp)Min.: 0.06 kVA(0.0816 hp)
Primary voltage
Max.: 690 VMin.: 230 V
Secondary voltage
Max.: 48 VMin.: 6 V
Secondary current
Max.: 41.7 AMin.: 1.5 A
Frequency
Max.: 63 HzMin.: 47 Hz
