نام محصول:
انزوا

نام انگلیسی:

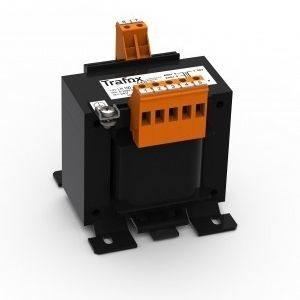

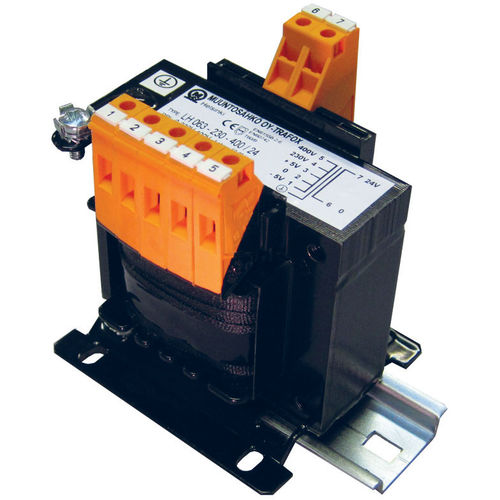

Isolation transformer LH series

برند:
Muuntosähkö Oy – Trafox

مشخصات:
Products in the LH-series are single-phase safety isolating / isolation transformers, which are protected against direct contact. Products in the LH-series are designed with maximum versatility in every transformer’s functions and technical features. Therefore, the transformer series fills the most common standards as well as so-called maritime requirements, and its functional properties are suitable for even the most demanding needs. Environmental requirements concerning the reduction of direct power loss and indirect losses in processes, storage and logistics have been taken into consideration in the development of the transformer series. The transformers are suitable for stationary mounting in an enclosure or a control cabinet in dry electric equipment rooms.

توضیحات:
Type
isolation

Configuration
encapsulated

Electrical characteristics
single-phase

Mounting
DIN rail mount

Norms
EN61558

Other characteristics
safety

Electric power
Max.: 5 WMin.: 0.04 W

Primary voltage
230 V, 400 V

Secondary voltage
Max.: 230 VMin.: 24 V

Frequency
50 Hz, 60 Hz
