نام محصول:
انزوا
نام انگلیسی:

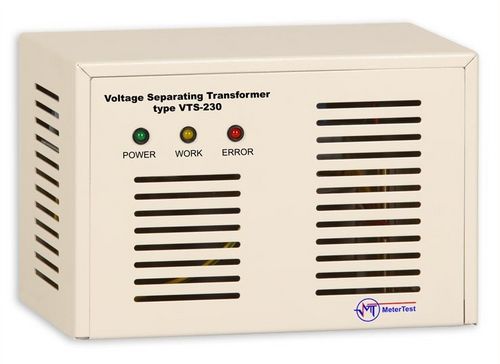

Isolation transformer VTS
برند:
MeterTest
مشخصات:
The VTS Voltage Separating Transformer was designed keeping in mind alternating current measurement systems requiring galvanic separation of the measuring circuits. The built-in electronic compensation system guarantees excellent parameters in the whole voltage range, ensuring at the same time high output power.
Typical error 0.01% makes the device an ideal solution for a wide range of applications. Among them there is a possibility of using the transformer for testing electricity meters with closed I-P links i.e. meters with connected current and potential circuits. Broad range of working voltages, high output power and high accuracy enable the VTS transformer to be rigidly integrated with a meter testing system. Once integrated, it can handle all kinds of meters, also meters with open links, with negligible influence on the overall system accuracy.
Special attention deserves the fact that this device, unlike the passive transformers, excellently copes with non-linear loads, which typical modern electronic meters are, not deteriorating its accuracy.
توضیحات:
Type
isolation
Configuration
immersed
Electrical characteristics
low-voltage
Mounting
through-hole
Other characteristics
closed
Electric power
0.025 kVA(0.034 hp)
Primary voltage
110 V, 220 V, 230 V, 240 V
Primary current
108 mA
