نام محصول:
انزوا
نام انگلیسی:

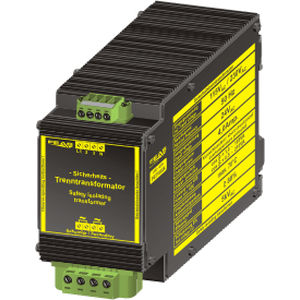

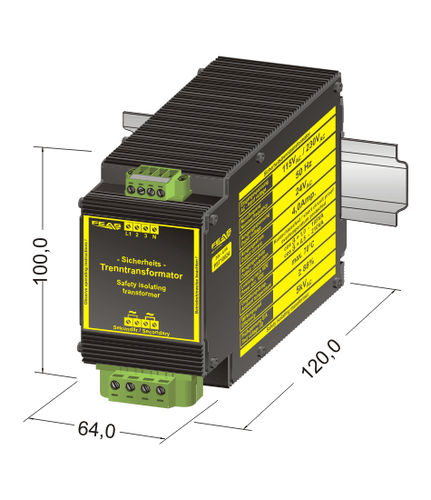

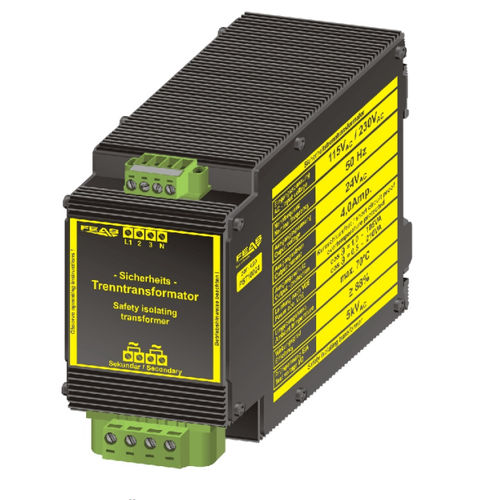

Isolation transformer PST10024
برند:
FEAS GmbH
مشخصات:
The Safety isolating transformer of the PST100 series are powerful and robust transformers to power devices with low alternating input voltage. The PST10024 transforms AC line voltage into short circuit proof 24V -output voltage, suited for AC the consumer. The input voltage can be 115V or 230V. Due to the uncomplex circuit arrangement the device shows a long life span and a high degree of efficiency (>80%). Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding.
Output separated according to VDE 0551
Extra low safety potential PELV (EN 60204), SELV (EN 60950)
Overload- and open circuit protected
Short circuit proof
Parallel connection possible
Suitable for the tropics – epoxy resin casted
Safety acc. to VDE, EN, UL, CSA
توضیحات:
Type
isolation
Applications
industrial, high-power
Electrical characteristics
voltage
Mounting
DIN rail mount, wall-mount
Norms
UL, VDE, CSA
Other characteristics
safety, AC
Primary voltage
115 V, 230 V
Secondary voltage
24 V
Secondary current
4 A
Frequency
Max.: 66 HzMin.: 45 Hz
