نام محصول:
انزوا
نام انگلیسی:
Isolation transformer C30 series
برند:
CIRCÉ
مشخصات:
Single-phase control and signalling transformers provide one or several voltages at the input, depending on the number of intermediate taps.
These versatile multi-tap transformers allow the control voltage to be stepped down from a variety of voltage sources to meet the needs of a wide range of applications. Contactor and PLC power supplies are common examples of applications for this product.
Circé designs and manufactures these single-phase control and signalling transformers with a reinforced isolation level between the input and output windings. They are made of components guaranteeing performance and reliability whatever the quantity manufactured, unitary or in series. As with all our products, each transformer is individually tested and each batch is delivered with its control report.
Connection
Three types of connection exist depending on the power rating of the product:
– screws,
– spring terminals,
– screw terminals.
Standard technical features

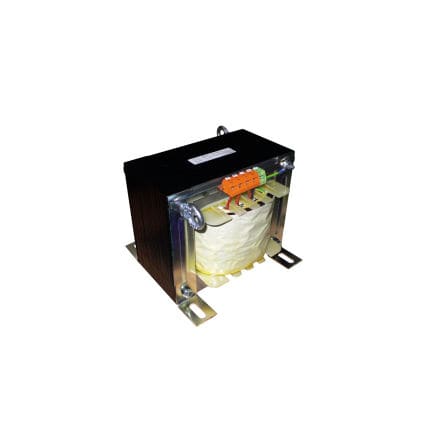

– Lifting rings from 15 kg
– Isolation voltage between windings > 4,510 V
– Electrostatic shield on request
– Reinforced isolation
– Temperature class B (40°C environment) 1 kVA

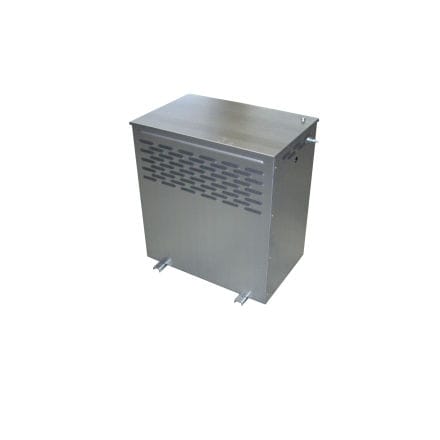

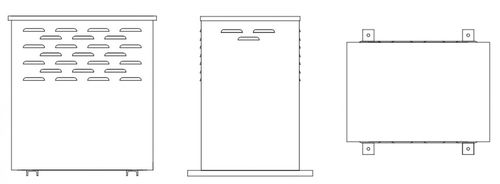

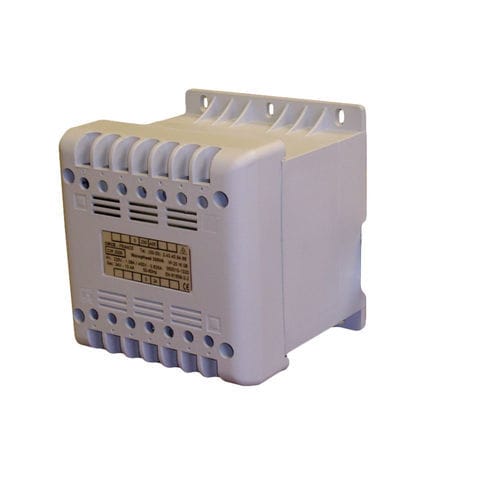

– Available in DIN rail mounting, without housing, with IP23 housing or other on request
توضیحات:
Type
isolation
Configuration
dry
Electrical characteristics
single-phase
Mounting
DIN rail mount
Norms
RoHS
Other characteristics
control, primary, secondary, cooling
Output power kVA
Min.: 0.04 kVA(0.0544 hp)Max.: 2.5 kVA(3.3991 hp)
Primary voltage
Min.: 230 VMax.: 400 V
Secondary voltage
24 V
Frequency
50 Hz, 60 Hz
