نام محصول:
انزوا
نام انگلیسی:
Isolation transformer STM series
برند:
BREVE-Tufvassons
مشخصات:

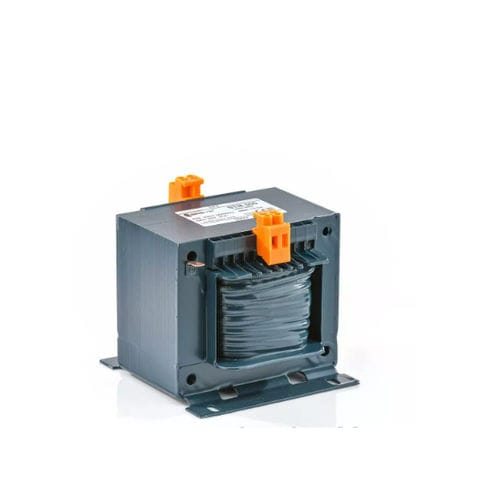

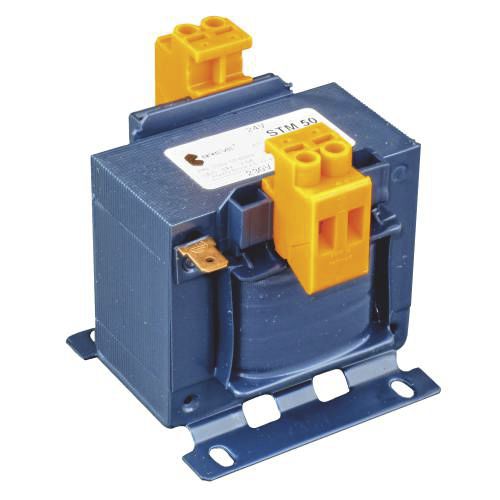

STM – SINGLE PHASE ISOLATING TRANSFORMERS IP00
Modern and economical make of general purpose isolating and/or safety transformers for building into installations and industrial or power engineering devices. This isolating, safety transformers are made with Class I insulation and protection grade IP00. Maximum ambient temperature 40°C, thermal class of insulation B (130°C). Manufactured in compliance with EN 61558-2-4 and EN 61558-2-6.
توضیحات:
Type
isolation
Configuration
encapsulated
Applications
industrial
Electrical characteristics
single-phase
Norms
EN61558
Other characteristics
safety, protection
Output power kVA
Min.: 0.03 kVA(0.0408 hp)Max.: 2.5 kVA(3.3991 hp)
Primary voltage
Min.: 230 VMax.: 400 V
Secondary voltage
Min.: 24 VMax.: 230 V
Frequency
50 Hz, 60 Hz
