نام محصول:
انزوا
نام انگلیسی:
Isolation transformer P3M series
برند:
BREVE-Tufvassons
مشخصات:

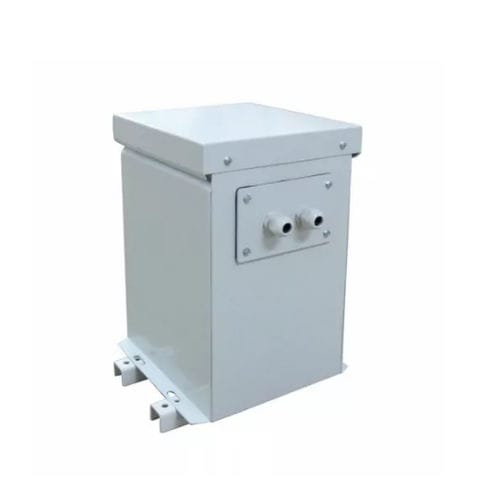

P3M – THREE PHASE ISOLATING TRANSFORMERS IP23
General purpose encased isolating transformers for building into installations and industrial or power engineering devices. This isolating transformers are made with Class I insulation and protection grade IP23.Maximum ambient temperature 40°C, thermal class of insulation B (130°C) for variants 1,5 – 100kVA and F (155°C) (from 10kVA to 50kVA). Manufactured in compliance with PN-EN61558. Typical connection: Dyn11
توضیحات:
Type
isolation
Configuration
encapsulated
Applications
industrial
Electrical characteristics
three-phase
Norms
EN61558
Other characteristics
protection
Output power kVA
Min.: 1,500 kVA(2,039.4317 hp)Max.: 100,000 kVA(135,962.1155 hp)
Primary voltage
Min.: 100 VMax.: 1,000 V
Secondary voltage
Min.: 24 VMax.: 500 V
Frequency
50 Hz, 60 Hz
