نام محصول:
انزوا
نام انگلیسی:

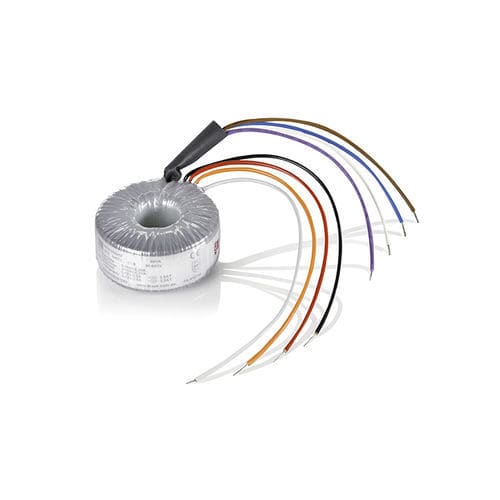

Isolation transformer RKD 20/2X24
برند:
BLOCK Electronics (Kunshan) Co., Ltd
مشخصات:
Efficiency up to 98 %
Maximum ambient temperature 104 °F / 40 °C
Insulation class B
Degree of protection IP 00
Benefits
Low weight
Outstanding temperature behavior due to low magnetic leakage field
Minimum size at high power
Minimal no-load losses
Dual input and dual output voltage for series or parallel connection
Very low noise field
Applications
As a mains transformer for adjustment of the voltage and simple electrical isolation.
As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100.
توضیحات:
Type
isolation, distribution
Applications
protection
Norms
IEC, UL, VDE, CSA
Primary voltage
115 V
Secondary voltage
24 V
Frequency
50 Hz
