نام محصول:
انزوا
نام انگلیسی:

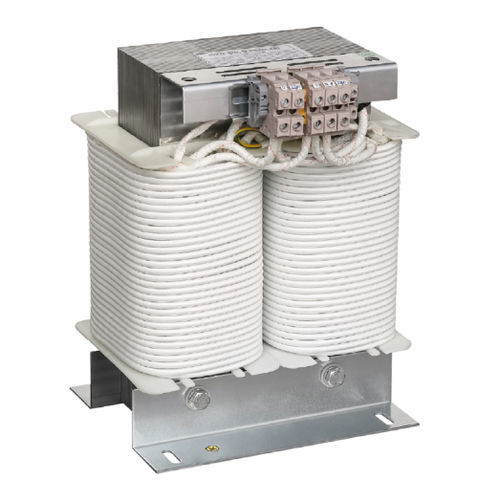

Isolation transformer IT Series
برند:
Aktif Muhendislik Dis Tic. AS.
مشخصات:
IT series medical isolation transformers are designed compatible with IEC 60364-7-710 standards for power supply of single phase IT systems and produced in accordance with IEC 61558-2-15 standards. Medical isolation transformers comply with IT systems in medical locations.
IT series medical isolation transformers with galvanically isolated windings provide temperature monitoring thanks to PTC thermistors placed in the windings. IT series medical isolation transformers designed at 6 different power value between 3.15…10 kVA have high excessive load capacities.
Isolation transformers are designed to reduce the effect of electrical faults. Thanks to the electrostatic protection, isolation transformers are used for the power supply of operating rooms, laboratory instruments, intensive care units and similar sensitive devices.
Application Areas
• Operating rooms
• Intensive care rooms
• Anesthetic rooms
• Premature baby rooms
• Operating preparation rooms
• Operating recovery rooms
• Heart cathererization rooms
• Angiographic examination rooms
Advantages
• Cu or Al windings
• High excessive load capacity
Standards
• IEC 61558-2-15
• IEC 60364-7-710
توضیحات:
Type
isolation
Applications
for medical applications
Electrical characteristics
single-phase
Norms
IEC
Other characteristics
protection, AC
Output power kVA
Max.: 10 kVA(13.5962 hp)Min.: 3.15 kVA(4.2828 hp)
Primary voltage
230 V
Secondary voltage
115 V, 230 V
Frequency
50 Hz, 60 Hz
