نام محصول:
اندازه گیری بوشینگ
نام انگلیسی:
Measuring bushing MST series
برند:
THK
مشخصات:

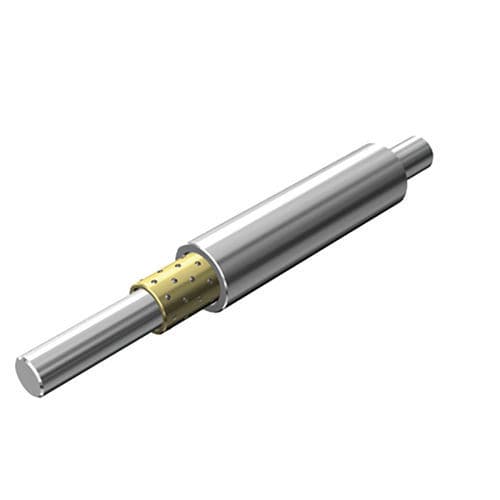

Model MST consists of an ST shaft, ball cage and nut. These components can freely be combined according to the application. The sectional shape is small, the clearance is minimal and the motion is extremely light and smooth.
Model MST consists of an ST shaft, ball cage and nut. These components can freely be combined according to the application. The sectional shape is small, the clearance is minimal and the motion is extremely light and smooth. Accordingly, model MST can be used in a variety of small, precision measuring equipment such as optic measuring instrument’s spindle, pen plotter, OA equipment, computer terminals, automatic scale, digital length measuring machine and solenoid valve.
Highly Accurate Bearing
Precision steel balls (sphericity in mutual difference: 0.0003 mm) compliant with JIS B 1501 are incorporated in a copper alloy ball cage to ensure high accuracy. The ball cage serves to prevent the
balls from falling off with a unique ball-retaining design.
Highly Durable Bearing
The nut of the ST shaft uses a selected material, and is heat-treated and ground. In addition, the raceways are finished with ultra fine finish. The rows of balls are densely arranged in the ball cage, and the balls are placed so that the ball raceways do not overlap with each other. It enables this model to be used over a long period without wear and to demonstrate high durability.
Compact Bearing
Use of a combination of balls with a 1 mm diameter and a thin nut allows a small sectional shape and space-saving design.
توضیحات:
Function
measuring, spindle
Material
metal
Product applications
ground, linear guide, machine, shaft, solenoid
